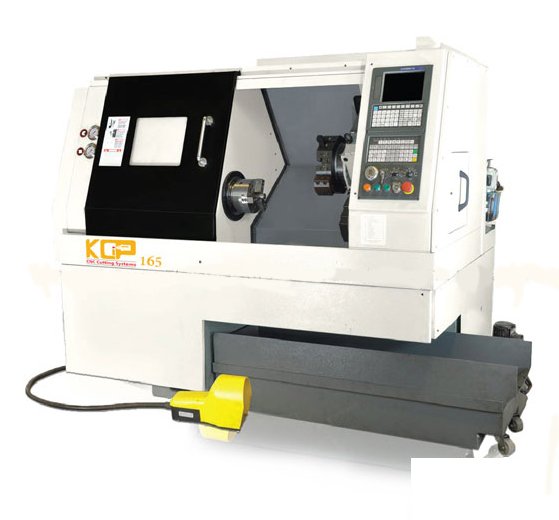

CNC Lathe Machine KGP 165

CNC Lathe Machine KGP 165 from Pathak Machines is designed for turning, facing, threading and accurate metal shaping. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports consistent operation across demanding shop-floor conditions. The machine is suitable for machine shops, tool rooms, training centers and component manufacturers, offering dependable build quality and practical industrial performance.

Order By Phone

Shipping Information Usually dispatched With In business days

CNC Lathe Machine KGP 165
Overview

Built for dependable industrial performance

Product Overview: CNC Lathe Machine KGP 165 is a professional lathe machines solution from Pathak Machines, developed for turning, facing, threading and accurate metal shaping. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.

Key Features: This machine is fabricated with a rigid structure and carefully selected working components. Its operating design focuses on rigid spindle alignment, smooth feed control and dependable job holding, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.

Applications and Benefits: The CNC Lathe Machine KGP 165 is used across machine shops, tool rooms, training centers and component manufacturers. It supports better process control for manufacturers focused on precision engineering and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.

Industries Served and Why Choose Pathak Machines: This product is suitable for component manufacturing, plant maintenance, industrial contracting and engineering operations. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.

Specifications

Technical details and working capacities

CAPACITY
  KCP TURN 165 KCP TURN 200 KCP TURN 230 KCP 230L
Swing over Bed mm 475 500 500 500
Maximum Turning Dia. mm 275 300 350 350
Standard Turning Dia. mm 165 200 230 230
Max.Turning Length (with chuck) mm 280 300 500 500
Admit Between Centres mm 350 350 600 1200
Chuck Size mm 170 200 210 210
TRAVERSES

Cross (X-Axis) Travel mm 175 175 175 175
Longitudinal (Z-Axis) Travel mm 350 550 550 1120
Rapid Feed (X & Z Axis) m/min 30/30 30/30 30/30 30/30
MAIN SPINDLE

Spindle Motor Power cont/30 min. 5.5/75KW 5.5/75KW 5.5/75KW 5.5/75KW
Spindle Bore mm 45 45 56 56
Spindle Nose   A2-5 A2-5 A2-6 A2-6
Max.Bar Capacity mm 38 38 48 48
Spindle Speed Range rpm 50-4500 50-4000 50-3500 50-3500
Full Power Speed Range rpm 100-3300 1000-3300 1000-3000 1000-3000
TAIL STOCK

Quill Dia. mm 80 80 80 80
Quill Taper mm MT4 MT4 MT4 MT4
Quill Stroke mm 100 100 100 100
Base Travel mm 250 250 400 400
TURRET

No. of Tool Position No. 8 8 8 8
Tool Shank Size mm 25x25 25x25 25x25 25x25
Max Boring Bar Dia. mm 40 40 40 40
Positioning Uncertainty   0.007 0.007 0.007 0.007
Repeatability mm 0.003 0.003 0.003 0.003
OTHER

Weight ( Approx.) kgs. 3400 3500 3900 4300
Dimension (Approx.) (L x W x H) 2600x1450x1800 2600x1450x1800 2600x1450x1800 2600x1450x1800
