Milling Machines

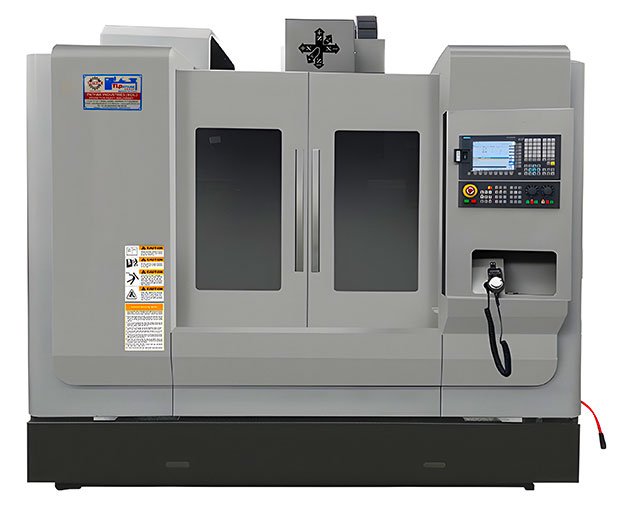

Vertical Machining Center
Vertical Machining Center from Pathak Machines is designed for slotting, surfacing, contouring and precision milling work. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports practical handling with dependable industrial output. The machine is suitable for tool rooms, die shops, maintenance teams and engineering workshops, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Vertical Machining Center is a professional milling machines solution from Pathak Machines, developed for slotting, surfacing, contouring and precision milling work. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is built for repeatable accuracy, operator confidence and long-term reliability. Its operating design focuses on accurate table travel, strong cutting support and repeatable machining output, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Vertical Machining Center is used across tool rooms, die shops, maintenance teams and engineering workshops. It reduces handling delays and improves confidence in daily production and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for small workshops, medium fabrication units and heavy industrial production plants. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Model Name | TLPVMC 600L | TLPVMC 650L | TLPVMC 850L | TLPVMC 855L | TLPVMC 1050L | TLPVMC 1160L | TLPVMC 1370L | TLPVMC 1580L |
| Worktable Size | 800x400 mm | 900x400 mm | 1000x500 mm | 1000x550 mm | 1000x500 mm | 1200x600 mm | 1400x700 mm | 1600x800 mm |
| T-Slots Size | 3-14x100 mm | 5-16x75 mm | 5-18x90 mm | 5-18x90 mm | 5-18x90 mm | 5-18x100 mm | 5-18x110 mm | 5-22x135 mm |
| X/Y/Z Axis Travel | 600/400/450 mm | 650/450/500 mm | 800/500/500 mm | 800/550/500 mm | 1000/500/500 mm | 1100/600/600 mm | 1300/700/700 mm | 1500/800/700 mm |
| Distance From Spindle Center to Column | 550 mm | 500 mm | 550 mm | 595 mm | 550 mm | 650 mm | 750 mm | 855 mm |
| Distance From Spindle Nose to Worktable Surface | 100-550 mm | 120-620 mm | 150-650 mm | 120-670 mm | 120-620 mm | 120-720 mm | 110-810 mm | 190-890 mm |
| Spindle Taper | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40/BT50 |
| Spindle Power | 5.5 K.W. | 5.5 K.W./7.5 K.W. | 7.5 K.W. | 7.5 K.W. | 7.5 K.W. | 11 K.W. | 11 K.W. | 11 K.W./15 K.W. |
| Max. Spindle Speed | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM |
| Max. Feed Speed | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min |
| Rapid Feed Speed (X/Y/Z) | 30/30/25 m/min | 20/20/12 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min |
| Tool Magazine Capacity | 12T/16T (optional) | 16T | 24T | 24T | 24T | 24T | 24T | 24T |
| Max. Length of Tool | 300 mm | 250 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Tool Change Time | 7 S./2.5 S. | 7 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. |
| +- Positioning Accuracy | +- 0.005 mm | +- 0.007 mm | +- 0.005 mm | +- 0.005 mm | +- 0.005 mm | +- 0.005 mm | +- 0.008 mm | +- 0.001 mm |
| +- Re-Positioning Accracy | +- 0.003 mm | +- 0.005 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.008 mm |
| Machine Dimension (LxWxH) | 1900x1700x2240 mm | 2300x2200x2400 mm | 2750x2300x2300 mm | 2800x2300x2300 mm | 2850x2300x2300 mm | 3350x2300x2550 mm | 3200x2540x2600 mm | 3800x2720x3610 mm |
| Max. Loading of Worktable | 300 kg | 400 kg | 500 kg | 600 kg | 500 kg | 800 kg | 1000 kg | 1500 kg |
| Machine Weight | 3500 kg | 3800 kg | 5300 kg | 5500 kg | 5400 kg | 6200 kg | 8200 kg | 13000 kg |
Applications
Where this machine fits best
Automotive
Aerospace
Tool and Die Making
