Bending Machines

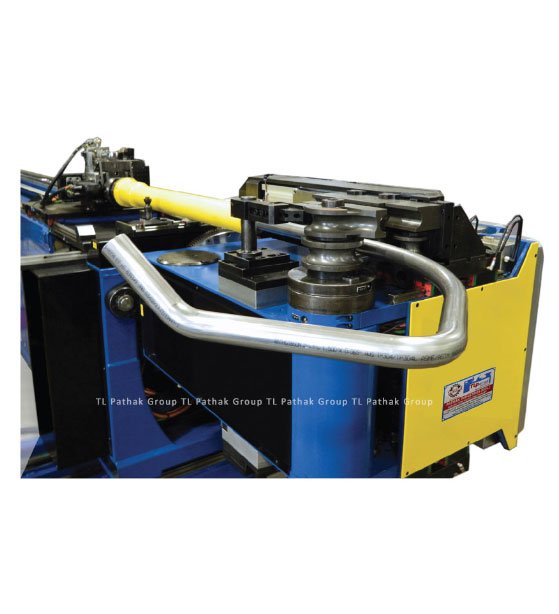

Heavy Duty Pipe Tube Bending Machine
Heavy Duty Pipe Tube Bending Machine from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports practical handling with dependable industrial output. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Heavy Duty Pipe Tube Bending Machine is a professional bending machines solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is engineered with a strong frame, practical controls and service-friendly access. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Heavy Duty Pipe Tube Bending Machine is used across manufacturing units, workshops, maintenance teams and industrial plants. It helps teams improve throughput while maintaining consistent quality and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for fabrication, maintenance, tool room, automotive, construction and general engineering sectors. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| MODEL NO. | PHDPB 32 | PHDPB 45 | PHDPB 65 | PHDPB 100 | PHDPB 150 | |
|
Max. Capacity (Dia .X Thickness) |
Max. mm Min. |
32 X 2.0 6.00 |
45 X 3.0 12.00 |
65 X 6.0 20.00 |
114 X 7.0 25.00 |
168.3 X 7 50.00 |
| Bend Radius CLR* |
Max. mm Min. |
120 20.0 |
150 25.0 |
350 30.0 |
350 40.0 |
450 75 |
|
Min. Bend Radius (In terms of D*) |
1.5 D | 1.5 D | 1.5 D | 1.5 D |
1.5 D (upto 100mm dia pipe) 2.5 D above 100mm dia pipe) |
|
| Standard Length over Mandrel Extra Length (available on request) | Mtrs. | 2.01 | 2.01 | 2.01 | 4.01 | 4.01 |
| Bend Angle Range | Deg | 5-180 | 5-180 | 5-180 | 5-180 | 5-180 |
| Bending Direction | PCB Cards & Boards | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise |
| Bending Speed | Deg/Sec. | 60 | 50 | 40 | 30 | 15 |
| Indicative Prodution Rate (Approx.) | 90 Deg Bends/Hr | 150 | 150 | 125 | 100 | 30 |
| Bend Angle Accuracy | Deg | +- 0.25 | +- 0.25 | +- 0.25 | +- 0.25 | +- 0.25 |
| Motor Capacity | HP | 5 | 7.5 | 10 | 20 | 30 |
| Weight (Approx.) | Tonners | 1 | 1.4 | 2 | 4 | 8 |
