Shipping Information Usually dispatched With In business days

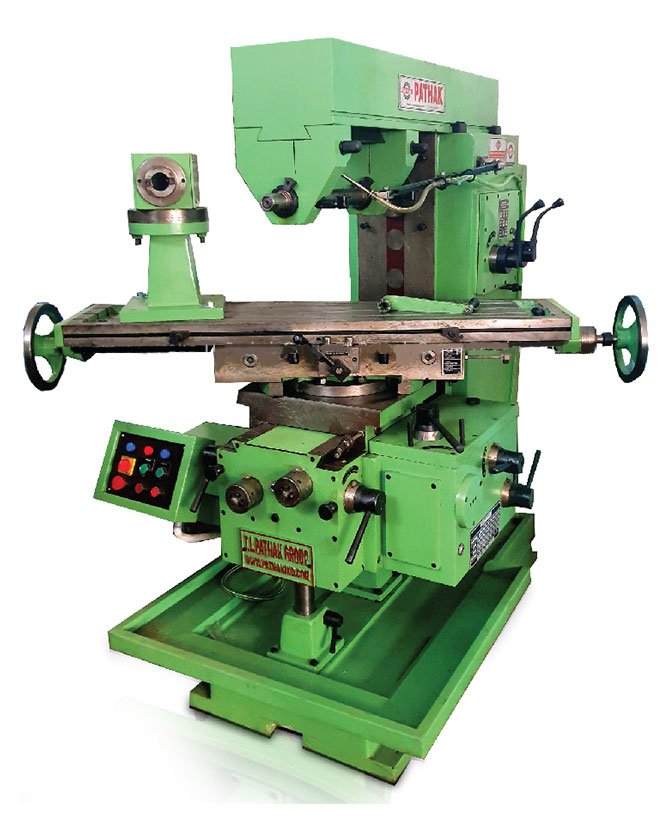

Product Overview: All Geared Milling Machine is a professional milling machines solution from Pathak Machines, developed for slotting, surfacing, contouring and precision milling work. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is built for repeatable accuracy, operator confidence and long-term reliability. Its operating design focuses on accurate table travel, strong cutting support and repeatable machining output, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The All Geared Milling Machine is used across tool rooms, die shops, maintenance teams and engineering workshops. It supports better process control for manufacturers focused on precision engineering and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for metalworking, production, repair, logistics, recycling and industrial service environments. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
| MODEL | PUM 2 | PUM 3 | PUM 4 | PUM 5 | PUM 6 |
TABLE |
|||||
| Working Surface | 1300 x 300 | 1400 x 330 | 1600 x 350 | 180 x 400 | 2000 x 450 |
| T.Slot Nos./ Size | 3.16 | 3.22 T | 3.22 T | 3.22 T | 3.22 T |
| T.Slot Centre | 70 | 80 | 85 | 90 | 95 |
| Swivel | + 45 deg | + 45 deg | + 45 deg | + 45 deg | + 45 deg |
| Longitudinal Travel- X | 700 | 800 | 1000 | 1200 | 1300 |
| Cross Travel-Y | 215 | 260 | 340 | 380 | 450 |
| Vertical Travel-Z | 450 | 510 | 600 | 650 | 700 |
FEEDS |
|||||
| No. of Feeds | 18 | 18 | 18 | 18 | 18 |
| Long.Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Cross Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Vert.Feed/Min | 3-70 | 3-70 | 3-70 | 3-70 | 3-70 |
| No.of Rapid Feed | 1 | 1 | 1 | 1 | 1 |
| Rapid Long & Cross / Min | 1050 | 1050 | 1050 | 1050 | 1050 |
| Rapid Vertical Min | 175 | 175 | 175 | 175 | 175 |
SPINDLE |
|||||
| No. of Spindle Speeds. | 12 | 12 | 12 | 12 | 12 |
| Range of Spindle Speeds | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM |
| Spindle Taper | ISO 40 | ISO 40 | ISO 40 | ISO 50 | ISO 50 |
| Arbor Diameter | 25.4 | 25.4 | 32 | 40 | 40 |
POWER |
|||||
| Main Motor (H.P) | 3 | 5 | 7.5 | 10 | 10 |
| Feed Motor (H.P) | 2 | 2 | 3 | 3 | 5 |
| Coolant Motor (H.P) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
