Shipping Information Usually dispatched With In business days

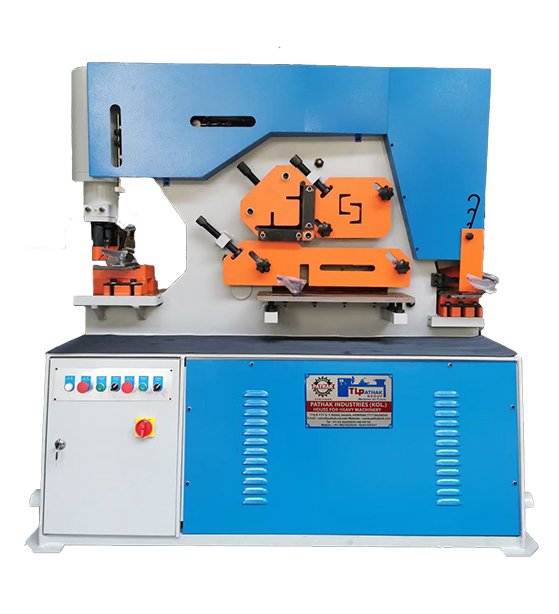

Product Overview: Multipurpose Iron Worker Machine is a professional multi cutter machines solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is built for repeatable accuracy, operator confidence and long-term reliability. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Multipurpose Iron Worker Machine is used across manufacturing units, workshops, maintenance teams and industrial plants. It helps teams improve throughput while maintaining consistent quality and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for metalworking, production, repair, logistics, recycling and industrial service environments. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
| Model | PIW-66 | PIW-90 | PIW-120 | PIW-160 | PIW-200 |
| Punching Force | 660 KN | 900 KN | 1200 KN | 1600 KN | 2000 KN |
| Punching Capacity | 25x16 mm | 30x20 mm | 30x25 mm | 35x30 mm | 38x35 mm |
| Throat Depth | 300 | 355 | 406 | 600 | 700 |
| Max Stroke Length | 80 | 80 | 80 | 80 | 80 |
| Cycle/Min (25 mm Stroke) | 20 | 20 | 20 | 20 | 20 |
| Punching Table Height | 940 | 1010 | 1100 | 1250 | 1300 |
| Square Bar Shear | 40x40 | 50x50 | 50x50 | 55x55 | 60x60 |
| Round Bar Shear | 45 | 50 | 60 | 65 | 70 |
| Channel Shear | 120 | 160 | 200 | 280 | 320 |
| H Beam Shear | 120 | 160 | 200 | 280 | 320 |
| Equal Angle at 90 | 125x12 | 140x12 | 160x14 | 180x16 | 200x16 |
| Section Table Height | 940 | 1010 | 1100 | 1250 | 1300 |
| Rectangular Notcher (WxDxT) | 800x100x8 | 800x100x8 | 800x100x8 | 800x100x8 | 800x100x8 |
| Notching Table Height | 900 | 900 | 910 | 1040 | 1040 |
| Max Width Of Shear | 400x8 mm | 480x10 mm | 600x16 mm | 600x20 mm | 700x25 mm |
| Round Bar Shear | 250x16 mm | 330x20 mm | 330x25 mm | 355x30 mm | 450x35 mm |
| Channel Shear | 900 | 900 | 910 | 1030 | 1030 |
| Motor Power | 4 KW | 5.5 KW | 7.5 KW | 11 KW | 15 KW |
| Tensile Strength | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 |
| Oil Volume | 60 L | 80 L | 120 L | 210 L | 250 L |
| Machine Dimension (LxWxH) | 1640x730x1770 mm | 1860x900x1900 mm | 2355x960x2090 mm | 2690x1040x2300 mm | 2900x1200x2450 mm |
| Machine Weight | 1700 kg | 2300 kg | 4300 kg | 6800 kg | 9500 kg |
