Press Machines

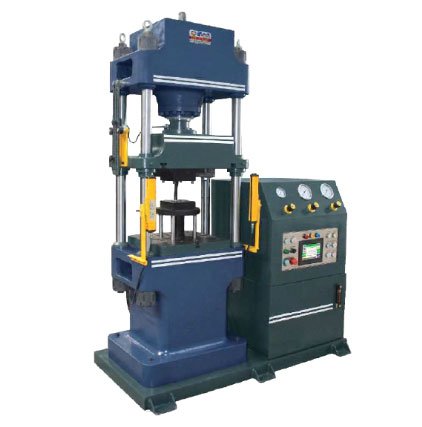

Hydraulic Deep Draw Machine
Hydraulic Deep Draw Machine from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports accurate work support with a durable service life. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Hydraulic Deep Draw Machine is a professional press machines solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is built for repeatable accuracy, operator confidence and long-term reliability. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Hydraulic Deep Draw Machine is used across manufacturing units, workshops, maintenance teams and industrial plants. It adds dependable capacity for workshops that need robust industrial solutions and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for component manufacturing, plant maintenance, industrial contracting and engineering operations. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Capacity | Bed Size (mm) | Bed to Ram (Delight Gap) mm | Stroke (Travel of Ram) mm | Cushion Cylinder Stroke | Hyd. Cushion Capacity | Shut Height | Motor HP | Oil |
|---|---|---|---|---|---|---|---|---|
| 40 Ton | 600 x 400 | 600 | 400 | 100 | 24 Ton | 200 | 5 | 200 |
| 50 Ton | 600 x 400 | 600 | 400 | 100 | 30 Ton | 200 | 7.5 | 200 |
| 60 Ton | 650 x 450 | 600 | 400 | 100 | 36 Ton | 200 | 7.5 | 300 |
| 80 Ton | 650 x 450 | 650 | 400 | 150 | 40 Ton | 250 | 10 | 300 |
| 90 Ton | 950 x 650 | 800 | 600 | 150 | 50 Ton | 200 | 10 | 600 |
| 100 Ton | 950 x 650 | 800 | 600 | 150 | 60 Ton | 200 | 10 | 650 |
| 125 Ton | 950 x 750 | 800 | 600 | 150 | 80 Ton | 200 | 15 | 650 |
| 150 Ton | 1000 x 800 | 900 | 650 | 200 | 100 Ton | 250 | 15 | 700 |
| 175 Ton | 1200 x 800 | 900 | 650 | 200 | 117 Ton | 250 | 20 | 800 |
| 200 Ton | 1250 x 850 | 900 | 650 | 200 | 125 Ton | 250 | 20 | 800 |
| 250 Ton | 1250 x 850 | 950 | 650 | 250 | 150 Ton | 300 | 25 | 800 |
| 300 Ton | 1250 x 850 | 950 | 650 | 250 | 150 Ton | 300 | 25 | 1000 |
| 350 Ton | 1400 x 850 | 950 | 650 | 300 | 180 Ton | 300 | 40 | 1200 |
| 400 Ton | 1400 x 850 | 950 | 650 | 300 | 200 Ton | 300 | 50 | 1200 |
| 450 Ton | 1500 x 850 | 950 | 650 | 300 | 200 Ton | 300 | 50 | 1400 |
| 500 Ton | 1600 x 850 | 950 | 650 | 300 | 250 Ton | 300 | 50 | 1500 |
