Milling Machines

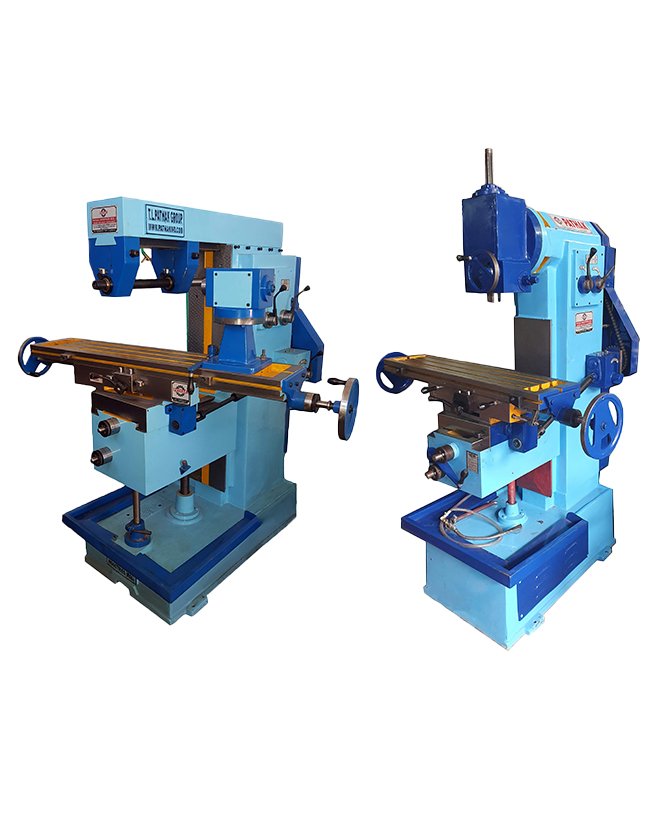

Universal and Vertical Milling Machine
Universal and Vertical Milling Machine from Pathak Machines is designed for slotting, surfacing, contouring and precision milling work. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports efficient production flow with reduced operator effort. The machine is suitable for tool rooms, die shops, maintenance teams and engineering workshops, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Universal and Vertical Milling Machine is a professional milling machines solution from Pathak Machines, developed for slotting, surfacing, contouring and precision milling work. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is built for repeatable accuracy, operator confidence and long-term reliability. Its operating design focuses on accurate table travel, strong cutting support and repeatable machining output, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Universal and Vertical Milling Machine is used across tool rooms, die shops, maintenance teams and engineering workshops. It reduces handling delays and improves confidence in daily production and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for small workshops, medium fabrication units and heavy industrial production plants. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| MODEL | PM OA | PM 1 | PM 1.5 | PM 2 | PM 3 | PM 4 |
| Face of Body | 6.5" | 8.5" | 10" | 11" | 12" | 13" |
| Surface Table | 30"*7" | 40"*9" | 48"*10" | 51"*11" | 58"*12" | 64"*13" |
| No. of T - Slots | 3 | 3 | 3 | 3 | 3 | 3 |
| Size of T - Slots | 3/8" | 1/2" | 1/2" | 1/2" | 5/8" | 5/8" |
| Swivel either side of center | 45 dgr | 45 dgr | 45 dgr | 45 dgr | 45 dgr | 45 dgr |
| Cross | 6" | 7" | 8" | 10" | 12" | 13" |
| Vertical of Traverse | 12" | 13" | 16" | 22" | 24" | 26" |
| Longitudinal Traverse | 14" | 19" | 22" | 25" | 28" | 30" |
| Standard Abour Dia | 1" | 1" | 1" | 1" | 1" | |
| Taper of Spindle | ISO 30 | ISO 40 | ISO 40 | ISO 40 | ISO 40 | ISO 40 |
| No. of Spindle Speed | 3 & 6 | 6 & 9 | 6 & 9 | 6 & 9 | 6 & 9 | 6 & 9 |
| Range of Spindle Speed | 45 to 550 | 45 to 550 | 50 to 750 | 80 to 680 | 42 to 700 | 42 to 700 |
| Dia of Spindle | 2" | 2.5" | 2.3/4" | 3.1/4" | 3.1/2" | 3.5/8" |
| No. of Longitudinal Feed Table | 2 | 2 | 2 | 2 | 3 | 3 |
| H.P | 1 | 2 | 2 | 2 | 3 | 5 |
| Floor Space (Base) | 26"*17" | 35"*20" | 40"*24" | 46"*26" | 48"*28" | 56"*30" |
| Height | 55" | 62" | 67" | 70" | 73" | 75" |
| Weight (Approx) | 500 kg. | 1100 kg. | 1450 kg. | 2200 kg. | 2750 kg. | 3650 kg. |
Accessories
Optional accessories
Rotary Table
Vertical Attachment
Dividing Head
Machine Vice
Rack Cutting Attachment
Slotting Attachment
