Shipping Information Usually dispatched With In business days

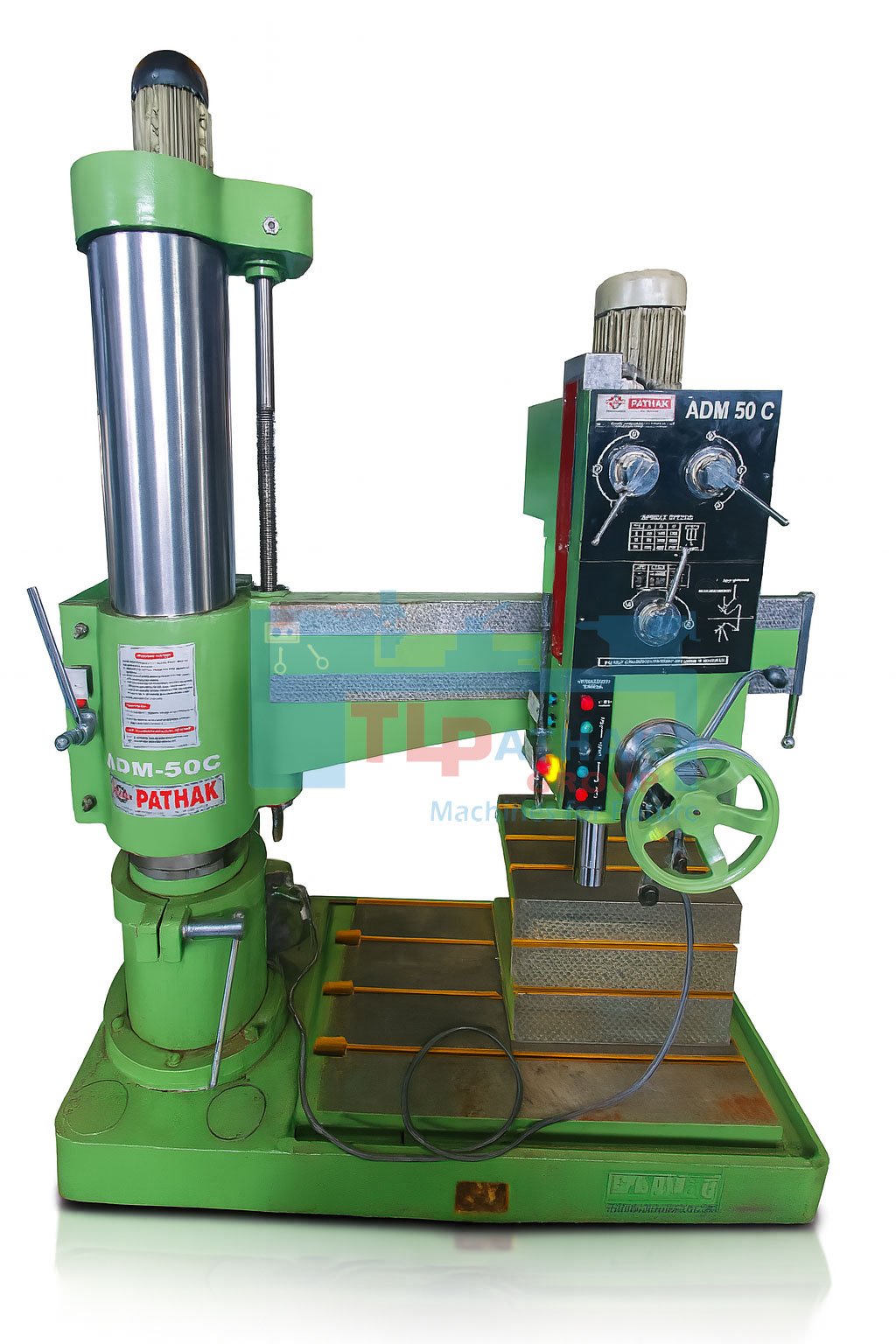

Product Overview: All Geared Radial Drill Machine RDB-Series is a professional drill machines solution from Pathak Machines, developed for drilling, tapping, reaming and hole-making operations. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is built for repeatable accuracy, operator confidence and long-term reliability. Its operating design focuses on stable column construction, accurate quill movement and reliable drive performance, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The All Geared Radial Drill Machine RDB-Series is used across fabrication units, repair workshops and production floors. It supports better process control for manufacturers focused on precision engineering and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for workshop, factory, warehouse, infrastructure and machinery maintenance applications. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
| MODEL | RD40B | RD50B | RD 50C | RD65B | RD75 |
| Drill Capacity in solid mild steel | 40mm | 50mm | 50mm | 65mm | 75mm |
| Drill Capacity in Cast Iron | 50mm | 60mm | 60mm | 75mm | 80mm |
| Dia of column | 255 | 310 | 310 | 355 | 405 |
| Drilling Radium Minimum | 375 | 450 | 425 | 650 | 675 |
| Drilling Radium Maximum | 950 | 1100 | 1325 | 1600 | 1950 |
| Machine Height For Floor | 2420 | 2760 | 2760 | 3170 | 3320 |
| Distance from spindle nose to top of the base plate minimum spindle in downward position | 100 | 100 | 100 | 100 | 100 |
| Distance from spindle nose to top of the base plate minimum spindle in downward position | 1150 | 1300 | 1300 | 1600 | 1750 |
| Drilling Depth | 180 | 225 | 225 | 325 | 325 |
| Working surface of base plate | 885 x 545 | 975 655 | 1150x655 | 1460x845 | 1735x940 |
| Dimension of Base | 1470x705x180 | 1645x835x200 | 1755x835x200 | 2370x1015x210 | 2640x1110x210 |
| Effective Area of Box Table | 330x330x330 | 550x400x400 | 600x450x450 | 600x450x450 | 600x450x450 |
| No. of Spindle Speed &Range (RPM.x steps) | 45-660 x6 steps | 40 - 790 x 9 steps |
25-930-12 steps | 20-740-12 steps | |
| No.of spindle feed & range (per Rev.xSteps) | 0.095-0.215-3 steps | 0.080 - 0.180 3 steps |
0.10 - 1.25 6 steps |
||
| Taper spindle nose socket | MT 4 | MT 5 | MT 5 | MT 5 | MT 6 |
| Main Motor | 2 HP | 3 HP | 3 HP | 5 HP | 7.5 HP |
| Elevating Motor | 1 HP | 2 HP | 2 HP | 3 HP | 5 HP |
| Total weight of machine (approx.) kgs. | 2000 kg. | 3000 kg. | 3200 kg. | 4800 kg. | 6500 kg. |
