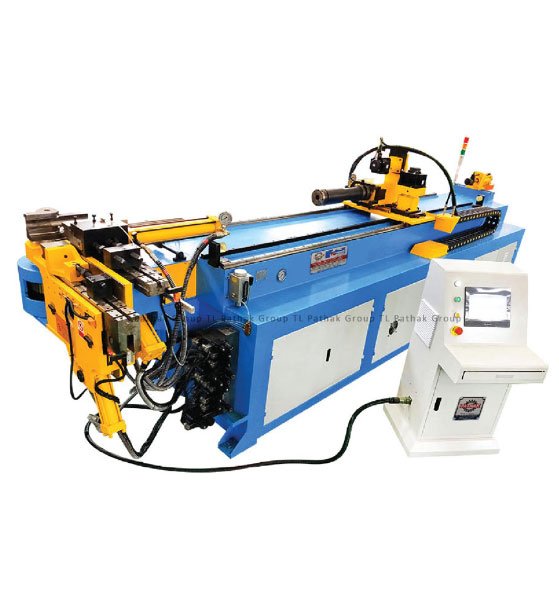

Cnc NC Heavy Duty Pipe Tube Bending Machine
Cnc NC Heavy Duty Pipe Tube Bending Machine from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports steady performance under regular production load. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Cnc NC Heavy Duty Pipe Tube Bending Machine is a professional bending machines solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is designed with balanced construction, dependable movement and industrial safety in mind. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Cnc NC Heavy Duty Pipe Tube Bending Machine is used across manufacturing units, workshops, maintenance teams and industrial plants. It supports smoother workflows where uptime and predictable output matter and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for workshop, factory, warehouse, infrastructure and machinery maintenance applications. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| MODEL NO | PL32 (3 Axis) | PPL45 (3 Axis) | PPL65 ( 3 Axis) | PPL100 (3 Axis) | ||||
| Max. Tube Capacity ( D x T) |
32mm x 2mm (ferrous tubes UTS 45 kg/mm2) |
45mm x 3mm (Ferrous tubes UTS 45 kg /mm2) |
65mm x 5mm (Ferrous tubes UTS 45 kg/mm2) |
114mm x 7mm (Ferrous tubes UTS 45 kg/mm2) |
||||
| Min. Tube Capacity (D) | 6mm | 12mm | 20mm | 20mm | ||||
| Max. Bend Radius (CLR) | 120mm | 150mm | 350mm | 350mm | ||||
| Min. Bend Radius (CLR) | 20mm | 25mm | 30mm | 30mm | ||||
| Min. Bend Radius (in terms of D) | 1.5D | 1.5D | 1.5D | 1.5D | ||||
| Length over mandrel | 2 Meters | 2 Meters | 2 Meters | 4 Meters | ||||
| Carriage travel | 1.5 Meters | 1.5 Meters | 1.5 Meters | 2.5 Meters | ||||
| Bend Angle Range | 5 to 180 degrees | 5 to 180 degrees | 5 to 180 degrees | 5 to 180 degrees | ||||
| Bending Direction | Clockwise | Clockwise | Clockwise | Clockwise | ||||
| Max .Bend Speed (Accaracy) | 30 degrees (+-0.2) | 30 degrees (+-0.2) | 30 degrees (+-0.2) | 30 degrees (+- 0.2) | ||||
| Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | |||||
| Axis (Programmable) | Max. Speed | Max. Speed | Max. Speed | Accuracy | Accuracy | Max. Speed | Accuracy | Accuracy |
| 400 mm / sec | +- 0.1 mm | |||||||
| Push (DBB) - Y Axis | 600 mm /sec |
+- 0.1 mm |
600 mm / sec | +- 0.1 mm | 600 mm / sec | +- 0.1 mm | 120 deg / sec | +- 0.1 deg |
| Turn (POB) - B Axis | 200 deg / sec | +- 0.1 deg | 200 deg / sec | +- 0.1 deg | 200 deg / sec | +- 0.1 deg | 30 deg / mm | +- 0.2 deg |
| Bend (DOB) - C Axis | 90 deg / mm | +- 0.2 deg | 90 deg / mm | +- 0.2 deg | 90 deg / mm | +- 0.2 deg | ||
| Plc & Servo System | PLC, MMI & Servo Sysems of Mitsubishi make | PLC, MMI & Servo Systems of Mitsubishi make | PLC, MMI & Servo Systems of Mitsubishi make | PLC, MMI & Servo Systems of mitsubishi make | ||||
| Memory Capacity | 12 bends per program, 50 programs | 12 bends per program, 50 programs | 12 bends per program, 50 programs | 12 bends per program, 50 programs | ||||
| Connected Load | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | ||||
| 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | |||||
| Oil Tank Capacity | 150 litres (built in) | 150 Litres (built in) | 200 Litres (built in) | 300 litres (built in) | ||||
| Machine Lubrication | Manual Centralized Lubrication System | Manual Centralized Lubrication System | Manual Centralized Lubrication System | Manual Centralized Lubrication System | ||||
