Grinding Machines

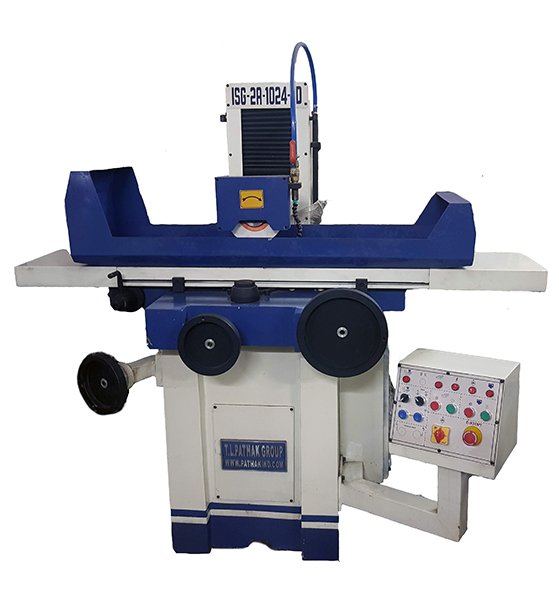

Manual Surface Grinder
Manual Surface Grinder from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports practical handling with dependable industrial output. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Manual Surface Grinder is a professional grinding machines solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is designed with balanced construction, dependable movement and industrial safety in mind. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Manual Surface Grinder is used across manufacturing units, workshops, maintenance teams and industrial plants. It supports better process control for manufacturers focused on precision engineering and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for workshop, factory, warehouse, infrastructure and machinery maintenance applications. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Descriptions | Model | PISG-618 A, 1A, 2A, 3A, ED/HD | PISG-820 A, 1A,2A,3A, ED/HD | PISG-1024 A, 1A, 2A, 3A, ED/HD | PISG-1224 A, 1A, 2A 3A, ED/HD |
| Table size | 150x450mm. (6"x18") | 200x500mm (8" 20") | 200x500mm (10" x 24") | 300 x 600 mm (12" x 24") | |
| Max. grinding length | Longitudinal | 475mm (19") | 525mm (21") | 625mm (25') | 625mm (25") |
| Max. grinding Width | Crosswise | 160m (6 1/4) | 212mm (81/2") | 212mm (101/2") | 312mm (12 1/2") |
| Max. Distance from table surface to spindle centerline | 250mm (10") | 400mm (16") | 450 mm (18") | ||
| Standard Magnetic Chuck Size | 160x350mm (6"x14") | ||||
| Longitidinal Movement of table | Hand wheel per rev. | 100mm (4") | |||
| Table speed elect. autofeed | |||||
| Max travel hydraulic | 475mm (19") | 525 mm (21") | 625mm (25") | 625mm (31") | |
| Table speed infinitely variable hydraulc | 50HZ, 5-25 m/min, 60HZ, 5-25 m/min | ||||
| Cross transverse travel | Max. auto transverse travel | 160m (61/4") | 212mm (8 1/4) | 262mm (10 1/2") | 312mm (12 1/2") |
| Handwheel per revolution | 5mm (0.2") | ||||
| Handwheel per graduation | 0.05mm (0.0012 1/2") | ||||
| Auto transverse increment | 1-10mm (0.04"-0.4") | ||||
| Wheelhead Vertical | Handwheel per revolution | 1mm (0.05") | |||
| Handwhee; per gradulution | 0.01 | ||||
| Griding spindle drive | Power rating | 1. H.P | 2 H.P | ||
| Speed | 50 HZ, 2850 RPM., 60HZ, 3450 R.P.M | ||||
| Standard grinding wheel | Diamter | 178mm (7") | 203mm (8") | ||
| Width | 12 mm (1/2") | 19mm (3/4") | |||
| Bore | |||||
| Hydraulic motor | Power rating | 1HP X 6P | 2HP X 6P | ||
| Longitidinal feed motor | Power rating | 1HP X 6P | 1HP X 6P | 2HP X 6P | |
| Floor space | Length x width x height total space require | 1370 x 1020 x 1845 mm (54"x40"x73") | 2030x1370x1630 mm (80" x 54" x 64") | 2450 x 1500 x 1630mm (96" x 61' x 64") | 2500 x 1680 x 2500mm (98"x66"x98") |
| Packing dimesnsions | LxWxH | 1270 x 920 x 1820 mm (50" x 36" x 72") | 1680 x 1270 x 1650 mm (66"x50'x65") | 1780 x 1320 x 1650 mm (70'x52'x65") | 1780 x 1440 x 1700 mm (70" x 56" x 67") |
Accessories
Optional accessories
Digital Readout
Electromagnetic Chuck
Magnetic Chuck
Precision Vice
