Press Machines

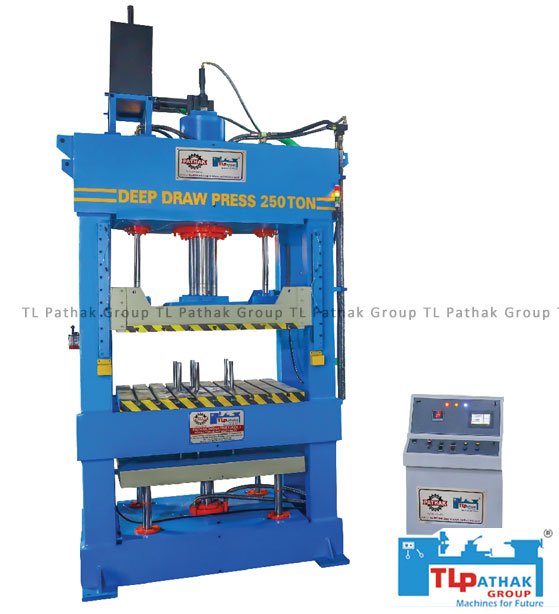

Double Action Deep Drawing Press
Double Action Deep Drawing Press from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports stable operation for repetitive engineering tasks. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Double Action Deep Drawing Press is a professional press machines solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is engineered with a strong frame, practical controls and service-friendly access. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Double Action Deep Drawing Press is used across manufacturing units, workshops, maintenance teams and industrial plants. It helps teams improve throughput while maintaining consistent quality and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for metalworking, production, repair, logistics, recycling and industrial service environments. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Technical Date | PDDP 30 | PDDP 60 | PDDP 100 | PDDP 150 | PDDP 250 |
| Maximum Pressure Force | 30 M.T. | 60 M.T. | 100 M.T. | 150 M.T. | 150 M.T. |
| Maximum Opening Force | 15 M.T. | 30 M.T. | 50 M.T. | 50 M.T. | 1000 M.T. |
| Size of platen table | 380 X 380 mm | 500 X 500 mm | 600 X 600 mm | 700 X 700 mm | 900 X 900 mm |
| Maximum Daylight | 450 mm | 600 mm | 700 mm | 800 mm | 1000 mm |
| Minimum Daylight | 250 mm | 300 mm | 350 mm | 400 mm | 500 mm |
| Difference between side column | 400 mm | 530 mm | 640 mm | 750 mm | 950 mm |
| Maximum stroke of piston | 200 mm | 300 mm | 350 mm | 400 mm | 500 mm |
| Capacity deep draw | 125 mm | 150 mm | 150 mm | 200 mm | 250 mm |
| Maximum working pressure | 320 ATM | 320 ATM | 320 ATM | 320 ATM | 320 ATM |
| Downward piston speed under low pressure | 75 mm/sec | 70 mm/sec | 50 mm/sec | 60 mm/sec | 50 mm/sec |
| Downward piston speed under high pressure | 4 mm/sec | 2.2 mm/sec | 1.3 mm/sec | 1.6 mm/sec | 3.2 mm/sec |
| Upward piston speed under low pressure | 75 mm/sec | 70 mm/sec | 50 mm/sec | 60 mm/sec | 50 mm/sec |
| Upward piston speed under high pressure | 7 mm/sec | 4 mm/sec | 2.2 mm/sec | 4.5 mm/sec | 6.4 mm/sec |
| Electric Motor | 3 H.P. | 5 H.P. | 7.5 H.P. | 10 H.P. | 15 H.P. |
