Plate Rolling Machine

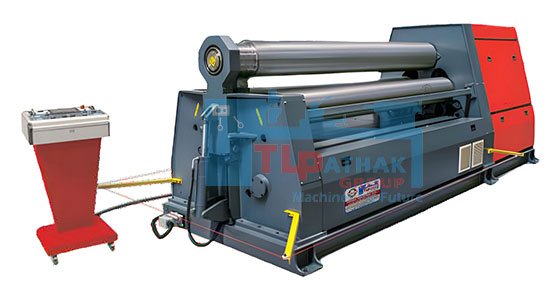

3 Roll Plate Bending Machine (Pre Pinching Type)
3 Roll Plate Bending Machine (Pre Pinching Type) from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports accurate work support with a durable service life. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: 3 Roll Plate Bending Machine (Pre Pinching Type) is a professional plate rolling machine solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is manufactured to support tough usage, regular maintenance and continuous production schedules. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The 3 Roll Plate Bending Machine (Pre Pinching Type) is used across manufacturing units, workshops, maintenance teams and industrial plants. It helps teams improve throughput while maintaining consistent quality and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for component manufacturing, plant maintenance, industrial contracting and engineering operations. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Model | Working Roll Length | Bending Thickness (MS.) | Pre-Bending Thickness (SS.) | Top Roll Diameter | Bottom Roll Diameter | Motor H.P. | Lenght | Height | Width |
| MPBD-3R-0621 | 2100 mm | 6 mm | 4 mm | 160 mm | 140 mm | 3 | 3950 mm | 1160 mm | 1080 mm |
| MPBD-3R-0821 | 2100 mm | 8 mm | 6 mm | 190 mm | 170 mm | 5 | 3950 mm | 1160 mm | 1080 mm |
| MPBD-3R-1021 | 2100 mm | 10 mm | 8 mm | 210 mm | 190 mm | 10 | 3950 mm | 1160 mm | 1080 mm |
| MPBD-3R-1221 | 2100 mm | 12 mm | 10 mm | 230 mm | 210 mm | 10 | 4030 mm | 1275 mm | 1370 mm |
| MPBD-3R-1621 | 2100 mm | 16 mm | 12 mm | 270 mm | 250 mm | 15 | 4180 mm | 1385 mm | 1440 mm |
| MPBD-3R-2021 | 2100 mm | 20 mm | 16 mm | 300 mm | 270 mm | 20 | 4440 mm | 1630 mm | 1620 mm |
| MPBD-3R-2521 | 2100 mm | 25 mm | 20 mm | 330 mm | 300 mm | 20 | 4250 mm | 1850 mm | 1800 mm |
| MPBD-3R-3021 | 2100 mm | 30 mm | 25 mm | 360 mm | 330 mm | 25 | 4500 mm | 2000 mm | 1900 mm |
| MPBD-3R-4021 | 2100 mm | 40 mm | 30 mm | 390 mm | 360 mm | 30 | 4900 mm | 2200 mm | 2000 mm |
| MPBD-3R-5021 | 2100 mm | 50 mm | 40 mm | 430 mm | 390 mm | 40 | 5200 mm | 2500 mm | 2200 mm |
| MPBD-3R-0626 | 2600 mm | 6 mm | 4 mm | 190 mm | 170 mm | 5 | 4450 mm | 1160 mm | 1080 mm |
| MPBD-3R-0826 | 2600 mm | 8 mm | 6 mm | 210 mm | 190 mm | 10 | 4450 mm | 1160 mm | 1080 mm |
| MPBD-3R-1026 | 2600 mm | 10 mm | 8 mm | 230 mm | 210 mm | 10 | 4530 mm | 1300 mm | 1370 mm |
| MPBD-3R-1226 | 2600 mm | 12 mm | 10 mm | 270 mm | 250 mm | 15 | 4680 mm | 1350 mm | 1450 mm |
| MPBD-3R-1626 | 2600 mm | 16 mm | 12 mm | 300 mm | 270 mm | 15 | 5000 mm | 1650 mm | 1650 mm |
| MPBD-3R-2026 | 2600 mm | 20 mm | 16 mm | 330 mm | 300 mm | 20 | 5000 mm | 1850 mm | 1850 mm |
| MPBD-3R-2526 | 2600 mm | 25 mm | 20 mm | 360 mm | 330 mm | 25 | 4900 mm | 1950 mm | 1850 mm |
| MPBD-3R-3026 | 2600 mm | 30 mm | 25 mm | 390 mm | 360 mm | 30 | 5400 mm | 2150 mm | 2000 mm |
| MPBD-3R-4026 | 2600 mm | 40 mm | 30 mm | 430 mm | 390 mm | 40 | 6000 mm | 2250 mm | 2200 mm |
| MPBD-3R-0631 | 3100 mm | 6 mm | 4 mm | 210 mm | 190 mm | 7.5 | 5000 mm | 1200 mm | 1100 mm |
| MPBD-3R-0831 | 3100 mm | 8 mm | 6 mm | 230 mm | 210 mm | 10 | 5100 mm | 1300 mm | 1400 mm |
| MPBD-3R-1031 | 3100 mm | 10 mm | 8 mm | 270 mm | 250 mm | 10 | 5200 mm | 1400 mm | 1500 mm |
| MPBD-3R-1231 | 3100 mm | 12 mm | 10 mm | 300 mm | 270 mm | 15 | 5500 mm | 1700 mm | 1700 mm |
| MPBD-3R-1631 | 3100 mm | 16 mm | 12 mm | 330 mm | 300 mm | 20 | 5700 mm | 1900 mm | 1900 mm |
| MPBD-3R-2031 | 3100 mm | 20 mm | 16 mm | 360 mm | 330 mm | 20 | 5700 mm | 1900 mm | 1900 mm |
| MPBD-3R-2531 | 3100 mm | 25 mm | 20 mm | 390 mm | 360 mm | 25 | 5900 mm | 2000 mm | 2100 mm |
| MPBD-3R-3031 | 3100 mm | 30 mm | 25 mm | 430 mm | 390 mm | 30 | 6000 mm | 2200 mm | 2300 mm |
| MPBD-3R-4031 | 3100 mm | 40 mm | 30 mm | 460 mm | 420 mm | 40 | 6200 mm | 2450 mm | 2400 mm |
| MPBD-3R-5031 | 3100 mm | 50 mm | 40 mm | 510 mm | 460 mm | 60 | 6400 mm | 2800 mm | 2500 mm |
| MPBD-3R-0641 | 4100 mm | 6 mm | 4 mm | 270 mm | 250 mm | 7.5 | 6200 mm | 1400 mm | 1500 mm |
| MPBD-3R-0841 | 4100 mm | 8 mm | 6 mm | 300 mm | 270 mm | 10 | 6200 mm | 1700 mm | 1700 mm |
| MPBD-3R-1041 | 4100 mm | 10 mm | 8 mm | 330 mm | 300 mm | 10 | 6400 mm | 1900 mm | 1900 mm |
| MPBD-3R-1241 | 4100 mm | 12 mm | 10 mm | 360 mm | 330 mm | 15 | 6500 mm | 1900 mm | 1900 mm |
| MPBD-3R-1641 | 4100 mm | 16 mm | 12 mm | 390 mm | 360 mm | 20 | 7000 mm | 2000 mm | 2000 mm |
| MPBD-3R-2041 | 4100 mm | 20 mm | 16 mm | 430 mm | 390 mm | 20 | 7200 mm | 2200 mm | 2200 mm |
| MPBD-3R-2541 | 4100 mm | 25 mm | 20 mm | 460 mm | 320 mm | 25 | 7300 mm | 2500 mm | 2350 mm |
| MPBD-3R-3041 | 4100 mm | 30 mm | 25 mm | 510 mm | 460 mm | 30 | 7500 mm | 2800 mm | 2500 mm |
