Lathe Machines

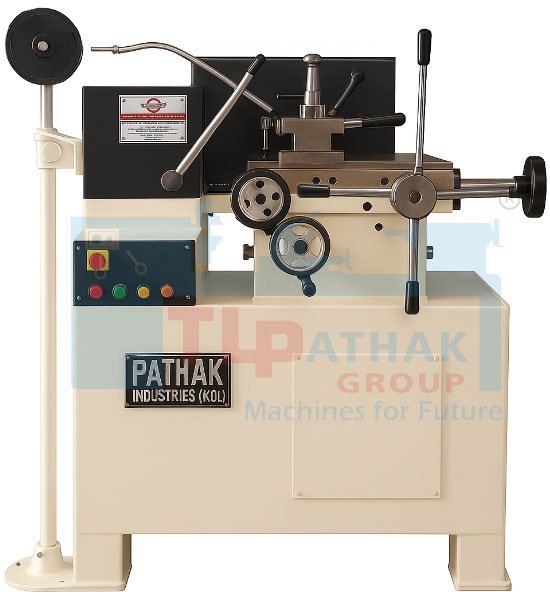

Capstan Lathe Machine
Capstan Lathe Machine from Pathak Machines is designed for turning, facing, threading and accurate metal shaping. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports efficient production flow with reduced operator effort. The machine is suitable for machine shops, tool rooms, training centers and component manufacturers, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Capstan Lathe Machine is a professional lathe machines solution from Pathak Machines, developed for turning, facing, threading and accurate metal shaping. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is designed with balanced construction, dependable movement and industrial safety in mind. Its operating design focuses on rigid spindle alignment, smooth feed control and dependable job holding, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Capstan Lathe Machine is used across machine shops, tool rooms, training centers and component manufacturers. It adds dependable capacity for workshops that need robust industrial solutions and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for fabrication, maintenance, tool room, automotive, construction and general engineering sectors. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Model | PCL 60 GN | PCL 50 GN | PCL 40GL | PCL 40 GN | PCL 32 GN | PCL 25 GN | PCL 25 S | PCL 20 S |
|---|---|---|---|---|---|---|---|---|
| Spindle Hollow | 62 | 52 | 42 | 42 | 38 | 32 | 28 | 25 |
| Maximum collet capacity | 60 | 50 | 40 | 40 | 32 | 25 | 25 | 20 |
| Range of spindle speed | 90- 1000 | 100- 1050 | 100- 1050 | 165-1500 | 165-1500 | 275-900 | 650-1660 | 650-1660 |
| Effective Strokes of turret slide | 180 | 175 | 165 | 140 | 140 | 130 | 110 | 100 |
| Bore size in turret hex. Head | 32 | 32 | 32 | 32 | 25 | 25 | 25 | 25 |
| Center of holes above turret slide | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Max. distance between spindle nose to turret face | 430 | 430 | 430 | 425 | 425 | 400 | 375 | 300 |
| Cross slide transverse travel | 150 | 150 | 150 | 95 | 95 | 95 | 95 | 95 |
| Cross slide longitudinal travel | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Length of bed | 1375 | 1375 | 1375 | 1225 | 1225 | 1275 | 1050 | 960 |
| Width of bed | 230 | 230 | 230 | 178 | 178 | 178 | 178 | 178 |
| Height of center above bed | 190 | 190 | 190 | 165 | 165 | 165 | 165 | 165 |
| Floor space required | 3m X 1m | 3m X 1m | 3m X 1m | 3m X 1m | 3m X 1m | 3m X 1m | 3m X 1m | 3m X 1m |
| Packing size (approx.) | 5 x 3 x 5 fts. | 5 x 3 x 5 fts. | 5 x 3 x 5 fts. | 5 x 3 x 5 fts. | 5 x 3 x 5 fts. | 4.5 x 3 x 5 fts. | 4 x 3 x 5 fts. | 4 x 3 x 5 fts. |
Capstan Lathe vs Turret Lathe – Tabular Comparison
| Feature | Capstan Lathe | Turret Lathe |
| Purpose | Small to medium batch production | Medium to large batch production |
| Turret Mounting | On a sliding ram fixed to a stationary saddle | On a moving saddle |
| Workpiece Length | Suitable for short-length jobs | Handles longer-length workpieces |
| Saddle Movement | Saddle remains stationary | Saddle travels with the turret |
| Tool Indexing | Hexagonal turret | Square or round turret |
| Power Handling | Lower power and torque | Higher power and torque handling |
| Flexibility | Less flexible, simpler design | More flexible, supports complex operations |
| Operator Skill | Requires moderate skill | May require higher skill depending on complexity |
| Typical Use | Repetitive parts like bolts, bushings | Larger and longer jobs like shafts, heavy fittings |
Applications
Where this machine fits best
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Metal Fabrication Shops
Automotive Industry
Accessories
Standard accessories
Bar Feed Attachment
Capstan Tool Holder Set
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Vertical Slider
