Lathe Machines

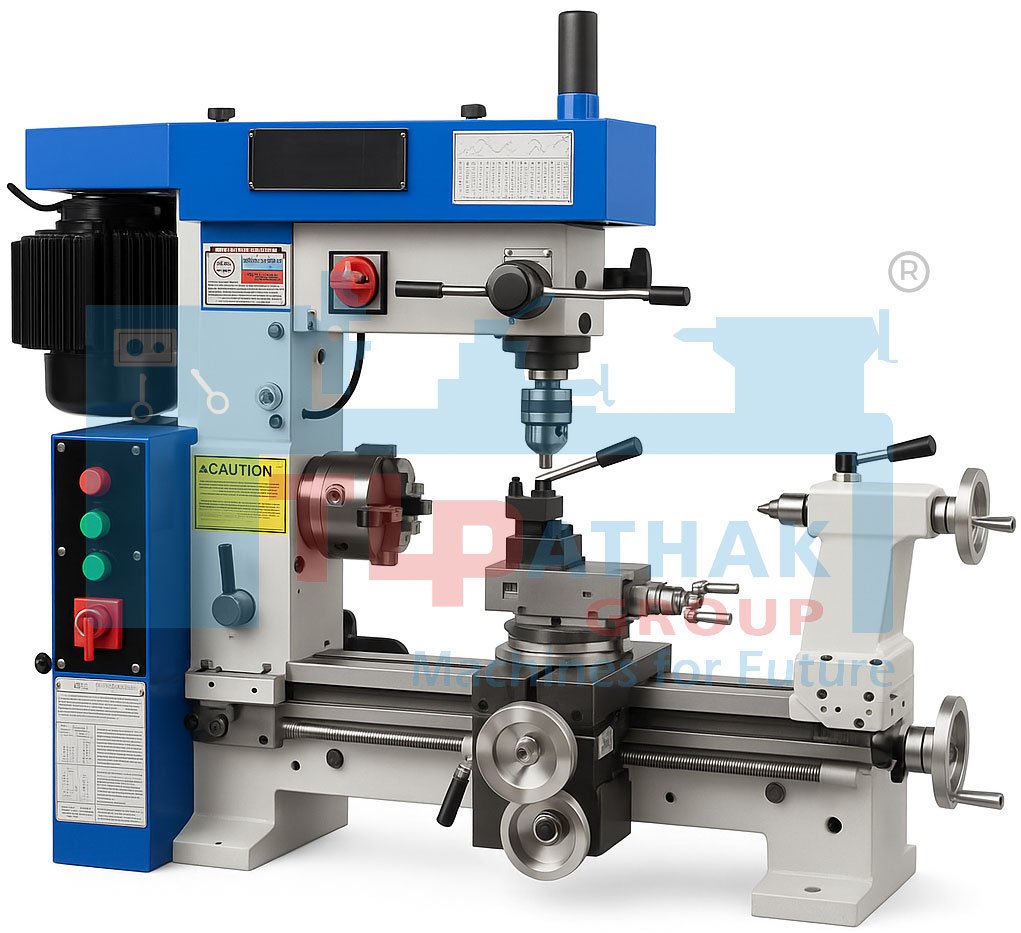

3 in 1 Lathe Cum Milling and Drilling Machine
3 in 1 Lathe Cum Milling and Drilling Machine from Pathak Machines is designed for turning, facing, threading and accurate metal shaping. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports consistent operation across demanding shop-floor conditions. The machine is suitable for machine shops, tool rooms, training centers and component manufacturers, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: 3 in 1 Lathe Cum Milling and Drilling Machine is a professional lathe machines solution from Pathak Machines, developed for turning, facing, threading and accurate metal shaping. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is fabricated with a rigid structure and carefully selected working components. Its operating design focuses on rigid spindle alignment, smooth feed control and dependable job holding, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The 3 in 1 Lathe Cum Milling and Drilling Machine is used across machine shops, tool rooms, training centers and component manufacturers. It reduces handling delays and improves confidence in daily production and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for component manufacturing, plant maintenance, industrial contracting and engineering operations. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Model | TLPLMD 500/800 |
| Swing over bed | 420mm(16-5/9") |
| Distance Between Centers | 500mm/800mm(20"/31-1/2") |
| Max. Longitudinal Travel | 440mm/740mm(17-1/3"/29-1/8") |
| Max, Cross Travel | 200mm(7-7/8") |
| Taper of Spindle | MT4 |
| Spindle Hole | 28mm(1-1/9") |
| Step of spindle speed | 7 steps |
| Range of Spindle Speed | 160-1360 RPM |
| Barrel Travel | 70mm(2-3/4") |
| Taper of center | MT3 |
| Metric Thread Range | 0.2-6mm |
| Inch Thread Range | 4-120 ?.?.? |
| Longitudinal Range of Automatic Feeding | 0.05-0.35mm/0.002-0.014" |
| Cross Range of Automatic Feeding | 0.05-0.35mm/0.002-0.014" |
| Max. Drilling Capacity | 22mm(7/8") |
| Worktable Size (LxW) | 475×160mm(18/1-2"×6-2/7) |
| Worktable Size (LxW) | 475×160mm(18/1-2"×6-2/7) |
| Max. End Mill | 28mm(1-1/9") |
| Max. Face Mill | 80mm(3-1/7") |
| Distance Between Spindle Center and Column | 285mm(11-2/9") |
| Distance Between Spindle and Worktable | 306mm(12") |
| Head Stock travel of up and down | 110mm(4-1/3") |
| Spindle taper | MT3 |
| Step of Spindle Speed | 16 steps |
| Range of Spindle Speed | 120-3000 RPM |
| Swivel Degree of Head Stock | +- 360° |
| Motor power | 0.75 kW |
| Packing Size | 1430/1130×580×1100 mm |
| N. Weight/G. Weight | 245kg/280 kg |
| Loading Amount | 40pcs/20 Container |
Applications
Where this machine fits best
Tool Rooms
Educational and training institutes
Maintenance workshops
