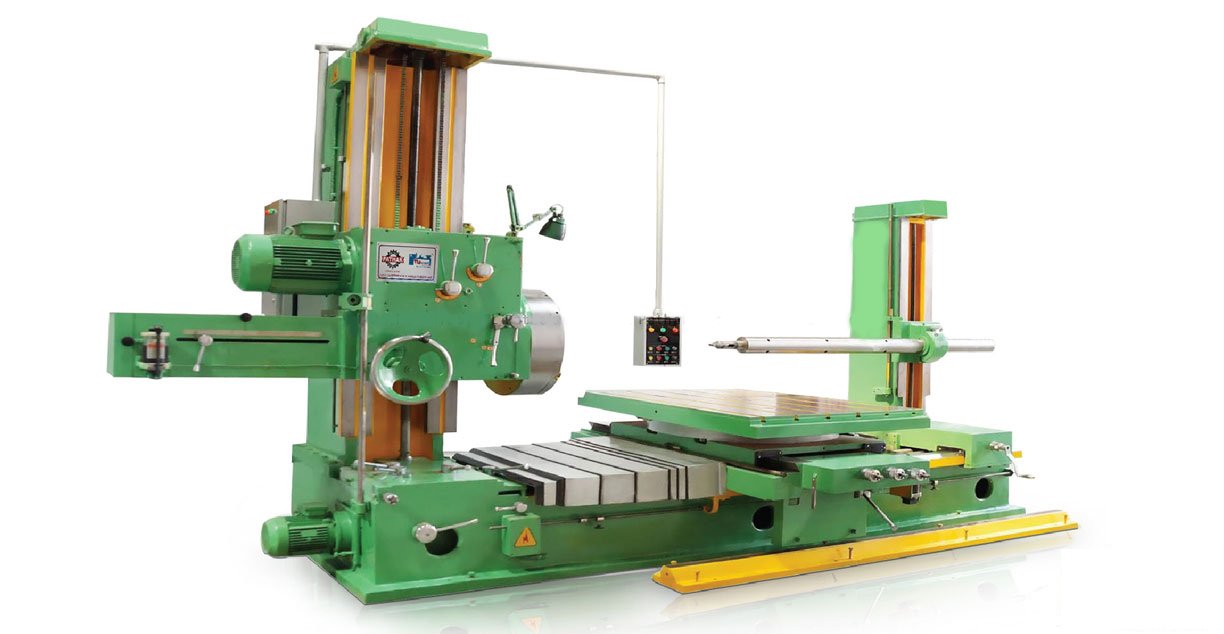

Horizontal Boring Machine
Horizontal Boring Machine from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports consistent operation across demanding shop-floor conditions. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Horizontal Boring Machine is a professional workshop equipments solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is fabricated with a rigid structure and carefully selected working components. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Horizontal Boring Machine is used across manufacturing units, workshops, maintenance teams and industrial plants. It adds dependable capacity for workshops that need robust industrial solutions and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for fabrication, maintenance, tool room, automotive, construction and general engineering sectors. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| MODEL | PHB-65 | PHB-80 | PHB-100 | PHB-110 | PHB-125 |
| Alloy Steel Work Spindle Hardened & Ground - Diameter | 65 | 80 | 100 | 110 | 125 |
| MorseTaper Number | 4 | 5 | 6 | 6 | 6 |
| Max.Longitudinal Movements of Working Spindle | 410 | 510 | 510 | 600 | |
| Number of Spindle Speeds | 9 | 9 | 9 | 9 | 9 |
| Range of Spindle Speeds - R.P.M. | 20 to 300 | 15 to 300 | 15 to 300 | 15 to 250 | 15 to 250 |
| Longitudinal Work Spindle Feeds Nos. | 9 | 9 | 9 | 9 | 9 |
| Max.Height of The Spindle Axis from Table Surface | 800 | 925 | 1000 | 1100 | 1200 |
| Min.Height of The Spindle Axis from Table Surface | 20 | 25 | 30 | 30 | 30 |
| Dimensions of The Rotary Table | 840 x 1050 | 900 x 1105 | 1030 x 1375 | 1100 x 1450 | 1220 x1675 |
| Longitudinal Table Traverse | 1500 | 1625 | 1725 | 1925 | 2050 |
| Long.Table Traverse Feeds (Including one Rapid) | 10 | 10 | 10 | 10 | 10 |
| Transversal Table Travel Feeds (Including one Rapid) | 10 | 10 | 10 | 10 | 10 |
| Vertical Head Stock Travel Feeds Including one Rapid | 4 | 4 | 4 | 4 | 10 |
| Rotary Table Automatic Feeds (Including one Rapid) | Nil | 10 | 10 | 10 | 10 |
| Max.Cross Movement of The Table | 910 | 1000 | 1100 | 1300 | 1500 |
| Max.Distance between Stay Bearing & Facing Head | 2150 | 2400 | 2690 | 2800 | 2950 |
| Facing Head Diameter | 450 | 505 | 555 | 600 | 650 |
| Weight Approximate in kgs. (With packing & Accessories) | 7500 | 9500 | 11500 | 14500 | 18000 |
| Weight Approximate in kgs. (Without packings Accessories) | 7000 | 8500 | 9500 | 11000 | 13500 |
| Power Motor (HP) | 3 & 1.5 | 5 & 2 | 7.5 & 2 | 10 & 3 | 12.5 & 5 |
Accessories
Standard accessories
Coolant Pump With Tank
Accessories
Optional accessories
Digital Read Out
