Milling Machines

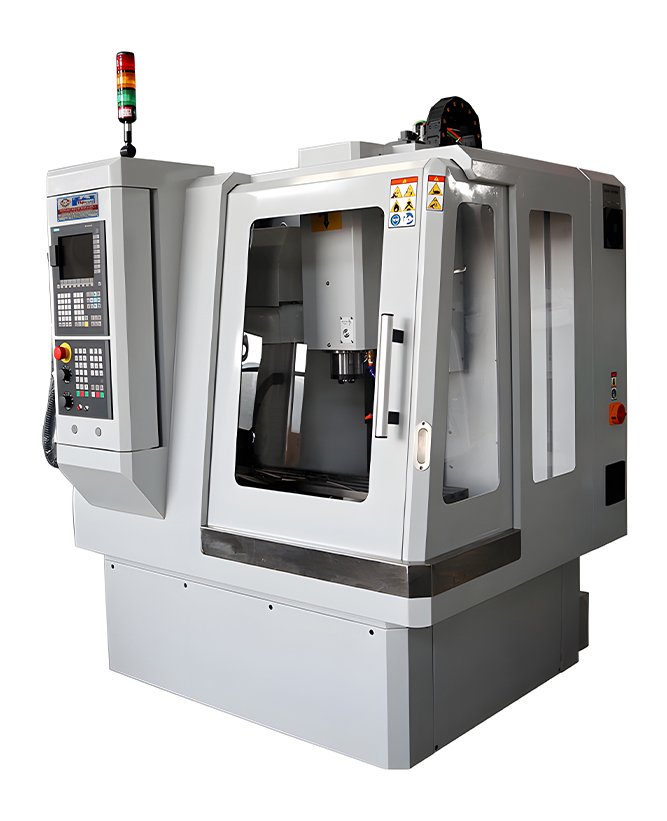

CNC Milling Machine
CNC Milling Machine from Pathak Machines is designed for slotting, surfacing, contouring and precision milling work. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports practical handling with dependable industrial output. The machine is suitable for tool rooms, die shops, maintenance teams and engineering workshops, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: CNC Milling Machine is a professional milling machines solution from Pathak Machines, developed for slotting, surfacing, contouring and precision milling work. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is designed with balanced construction, dependable movement and industrial safety in mind. Its operating design focuses on accurate table travel, strong cutting support and repeatable machining output, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The CNC Milling Machine is used across tool rooms, die shops, maintenance teams and engineering workshops. It supports smoother workflows where uptime and predictable output matter and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for fabrication, maintenance, tool room, automotive, construction and general engineering sectors. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| Model Name | TLPCM 122 | TLPCM 126 | TLPCM 132 | TLPCM 136 |
| Worktable Size | 700x210 mm | 800x260 mm | 800x320 mm | 1250x360 mm |
| T-Slots (NxWxD) | 5-18x100 mm | 3-16x75 mm | 3-16x100 mm | 3-18x80 mm |
| X/Y/Z Axis Travel | 400/220/350 mm | 450/320/450 mm | 600/400/450 mm | 900/350/500 mm |
| Distance From Spindle Center to Column | 270 mm | 360 mm | 400 mm | 460 mm |
| Distance From Spindle Nose to Worktable Surface | 75-520 mm | 90-540 mm | 100-550 mm | 100-600 mm |
| Spindle Taper | BT30 | BT40 | BT40 | BT40 |
| Spindle Power | 2.2-3.7 K.W. | 3.7 K.W. | 5.5 K.W. | 5.5 K.W. |
| Max. Spindle Speed | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM |
| Max. Feed Speed | 18 m/min | 10 m/min | 10 m/min | 10 m/min |
| Rapid Feed Speed (X/Y/Z) | 10/10/10 m/min | 15/15/15 m/min | 20/20/18 m/min | 10/10/8 m/min |
| AC Servo Motor Torque (X/Y/Z) | 6/6/6 N.m. | 6/6/15 N.m. | 7.7/7.7/15 N.m. | 7.7/7.7/15 N.m. |
| X/Y/Z Feed Motor Power | 0.75/0.75/1 K.W. | 1/1/2 K.W. | 1.5/1.5/2 K.W. | 1.5/1.5/2 K.W. |
| Power | 4.5 K.W. | 8 K.W. | 11 K.W. | 11 K.W. |
| X/Y/Z Ball Screw | 2505 | 2510 | 3210 | X-3206,Y-4006 |
| Tool Magazine Capacity | 8T/12T (optional) | 12T | 12T/16T (optional) | 16T |
| Tool Length | 175 mm | 200 mm | 200 mm | 200 mm |
| Tool Change Time | 7 S. | 7 S. | 7 S. | 7 S. |
| Positioning Accuracy (X/Y/Z) | 0.02 mm | 0.02 mm mm | 0.01 mm mm | 0.02 mm mm |
| Re-Positioning Accuracy (X/Y/Z) | 0.01 mm | 0.01 mm | 0.005 mm | 0.01 mm |
| Overall Dimension (LxWxH) | 1470x1550x2080 mm | 2100x1850x2250 mm | 2200x1950x2300 mm | 3000x2150x2450 mm |
| Machine Weight | 1300 kg | 2200 kg | 2400 kg | 3500 kg |
Applications
Where this machine fits best
Aerospace
Automotive Industry
Tool and Die Making
Electronics Components
Fasteners
Machine parts
