Shipping Information Usually dispatched With In business days

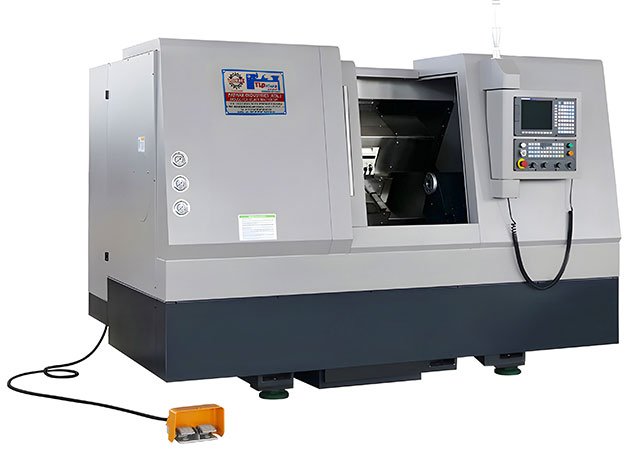

Product Overview: CNC Turn Mill is a professional milling machines solution from Pathak Machines, developed for slotting, surfacing, contouring and precision milling work. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is fabricated with a rigid structure and carefully selected working components. Its operating design focuses on accurate table travel, strong cutting support and repeatable machining output, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The CNC Turn Mill is used across tool rooms, die shops, maintenance teams and engineering workshops. It reduces handling delays and improves confidence in daily production and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for small workshops, medium fabrication units and heavy industrial production plants. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
| Model | TLPCTM-50A |
| Capacity | |
| Hydraulic Chuck Size | 8" |
| Max. Swing dia. Over bed | 500 mm |
| Max. Length of workpiece | 450 mm |
| Max. Turning Dia | 400 mm |
| Max. Swing Dia. Over Slide | 280 mm |
| Spindle | |
| Dia. of Spindle Bore | 65 mm |
| Max. Dia of through hole | 50 mm |
| Spindle Nose | A2-6 |
| Spindle Speed Range | 50-3000 r/min |
| Max. Spindle Output Torque | 117 Nm |
| Spindle Motor | 11 KW |
| Axis | |
| X Axis Travel | 200 mm |
| Y Axis Travel | 550 mm |
| X Axis Rapid Traverse | 18 m/min |
| Z Axis Rapid Traverse | 18 m/min |
| Turret | |
| Type of Turret | BMT45 |
| Power Turret | 12 position |
| Tool Shank Size | 25x25 mm |
| Boring Tool Shank Size | 40/30/25/20 mm |
| Tailstock | |
| Type of Tailstock | Hydraulic |
| Travel of Tailstock | 450 mm |
| Taper of Tailstock Quill | MT5 |
| Max. Loading Capacity | |
| Disk Parts | 200 kg |
| Shaft Parts | 500 kg |
| Others | |
| Shaft Parts | 3650 kg |
| Overall Dimension (LxWxH) | 2700x1890x1945 mm |
