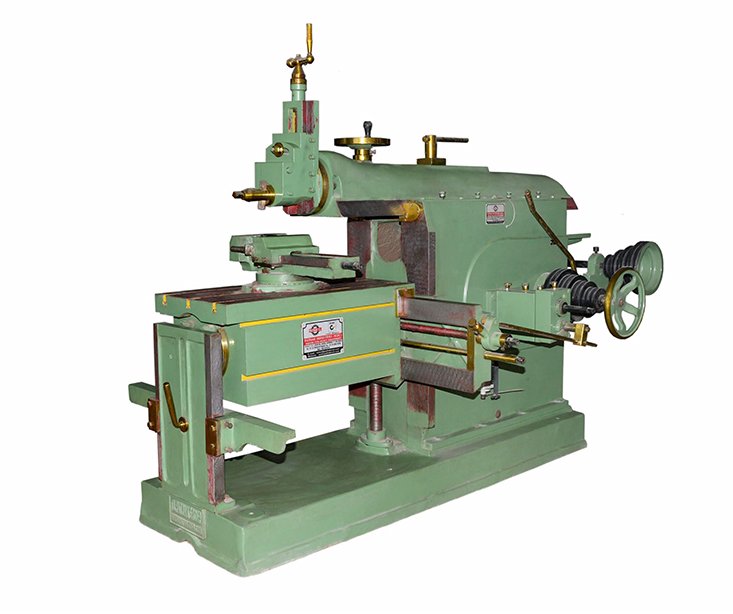

Cone Pulley Type Shaping Machine
Cone Pulley Type Shaping Machine from Pathak Machines is designed for precision engineering, fabrication support and dependable industrial production. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports steady performance under regular production load. The machine is suitable for manufacturing units, workshops, maintenance teams and industrial plants, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Cone Pulley Type Shaping Machine is a professional workshop equipments solution from Pathak Machines, developed for precision engineering, fabrication support and dependable industrial production. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is manufactured to support tough usage, regular maintenance and continuous production schedules. Its operating design focuses on heavy-duty construction, smooth operation and long service reliability, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Cone Pulley Type Shaping Machine is used across manufacturing units, workshops, maintenance teams and industrial plants. It supports smoother workflows where uptime and predictable output matter and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for small workshops, medium fabrication units and heavy industrial production plants. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| MODEL | SS12 | SS18 | SS24 | SS30 | SS36 | SS40 |
| Maximum Working Stroke | 14'' | 20'' | 26'' | 32'' | 38'' | 42'' |
| Length of ram without tool slide | 30'' | 40'' | 53'' | 60'' | 66'' | 75'' |
| Ram bearing in Column | 20'' | 26'' | 31'' | 37'' | 41'' | 44'' |
| Ram bearing width | 7.5'' | 10.5'' | 12'' | 12.5'' | 12.5'' | 14'' |
| Tool Slide Traverse | 5'' | 6'' | 8'' | 9'' | 10'' | 11'' |
| Maximum distance from table to ram | 14'' | 15'' | 16'' | 18'' | 20'' | 24'' |
| Maximum distance from table to ram | 2'' | 2'' | 2'' | 2'' | 2'' | 3'' |
| Horizontal traverse of the table | 16'' | 20'' | 26'' | 30'' | 32'' | 36'' |
| No of speed | 3 | 3 | 4 | 4 | 4 | 4 |
| Length and width of cross slide | 25''*10.5'' | 31''*11'' | 38''*12'' | 43''*12.5'' | 46''*12.5'' | 51''*15'' |
| Top clamping surface of table | 14''*11'' | 18.5''*12'' | 25''*15 | 31''*16'' | 37''*18.5'' | 40''*20.5'' |
| Size of base plate | 40''*16.5'' | 50''*22'' | 64''*23'' | 76''*24'' | 82''*26'' | 90''*30'' |
| Power required | 1 H.P. | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P. |
| Approximate net weight | 800 kg. | 1200 kg. | 1800 kg. | 2300 kg. | 3200 kg. | 4000 kg. |
