Pillar Type Power
Press Machine(‘H’ TYPE)

Pillar Type Power Press Machine(‘H’ TYPE)

Send Email /SMS Enquiry

    Watch Video

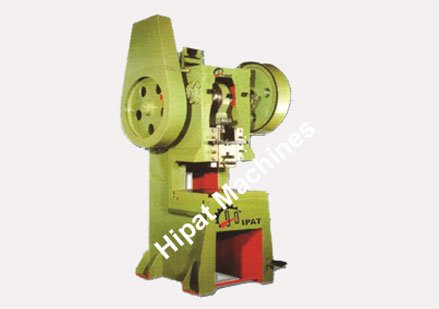

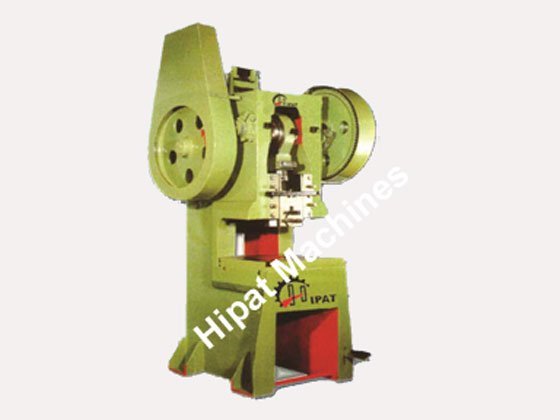

    Pillar Type Power Press Machine(‘H’ TYPE)

    The clutch is of Rolling key type & gives continuous strokes for mass production. Crank shaft is made of special Alloy Steel and fitted in with Gun Metal bushes for smooth

    PRICE: ON REQUEST

    Get Quotation
    Download Brochure
    Request Callback

    Order by Phone
    0671-2505250

    Shipping Information Usually dispatched With In business days.

    Technical Specifications

    10 Tons 30 Tons 50 Tons 75 Tons 100 Tons 150 Tons 200 Tons 250 Tons
    Wed to Ram Bottom mm 203 254 305 356 406 432 483 610
    Bed mm 305*320 460*460 406*510 535*587 610*660 635*710 730*810 855*910
    Stroke mm 63 76 89 102 115 127 140 152
    Crank Shaft Dai mm 76 102 127 153 178 190 203 229
    Gear Dai mm 450 610 660 760 856 956 1120 1270
    Fly Wheel Dai mm 555 710 865 965 1015 1120 1325 1425
    Hole in Ram For Die Clamping mm 25 28 32 37 44 50 50 63
    Floor to top of Bed mm 635 762 762 762 762 762 762 813
    Over All Height Without Motor mm 1473 1651 1980 2133 2387 2590 2793 3175
    Floor Area Required mm 762*635 901*672 990*799 1041*825 1270*1016 1371*1056 1409*1078 1510*1053
    No of Strokes Per Minute mm 70 60 55 50 40 35 30 28
    Motor Power Required in HP 2 3 5 5 7.5 10 15 20
    R.P.M Required 1440 1440 1440 1440 1440 1440 1440 1440
    App. Wt. In Kgs. 800 1200 2000 3100 4200 6000 9000 11000
    OPTIONAL ACCESSORIES STANDARD ACCESSORIES APPLICATIONS
    1. MOTOR 1. STROKE ADJUSTMENT SPANNER 1. Automobiles
    2. DIGITAL READ OUT 2. MOTOR PLATE 2. Die & Mould Manufacturers
    3. STROKE COUNTER 3. TOOLKIT 3. Aerospace
    4. Medical Equipment
    5. Textile Machinery
    6. Diamond & Jewellery Industries
    7. Allied Machinery
    8. Plastic Processing Machinery
    9. Defence
