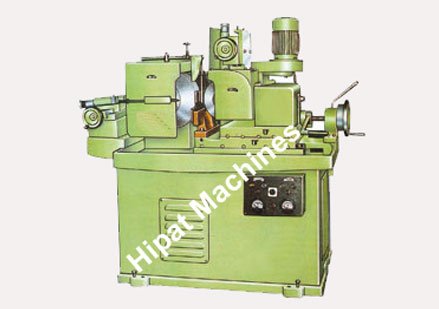

Centreless Grinders
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Technical Specifications
| MODEL | AMI- 1 | AMI- 2 | AMI- 3 |
|---|---|---|---|
| Maximum Grinding Diameter | 75 mm | 75 mm | 125 mm |
| Minimum Grinding Diameter | Min. | 1 mm | 1.5 mm |
| Maxi. included angle for taperwork (Without using forming attachment) | 5 deg. | 5 deg. | 5 deg. |
| Speed of grinding wheel R. P M. | 1600 | 1800 | 1250 |
| Number of speeds of Control wheel | 3 | 3 | 3 |
| Diameter of grinding wheel | 350 mm | 350 mm | 350 mm |
| Maximum Width of grinding wheel | 100 mm | 100 mm | 150 mm |
| Diameter of hole in grinding wheel | 125 mm | 150 mm | 300 mm |
| Diameter of control wheel | 230 mm | 230 mm | 300 mm |
| Maximum width of control wheel | 100 mm | 100 mm | 150 mm |
| Diameter of hole in grinding wheel | 75 mm | 75 mm | 125 mm |
| H.P. of motor for wheel head | 5 H. P. | 7.5 H. P. | 15 H. P . |
| H.P. of motor for control wheel | 3/4 H.P. | 10 H. P. | 2 H. P. |
| Speed of motors RPM | 1440 | 1440 | 1440 |
| Floore space for machine | 30″ X 40″ | 30″ X 40″ | 43″ X 65″ |
| Approximate weight | 1600 Kgs. | 1650 Kgs. | 2600 Kgs. |
| OPTIONAL ACCESSORIES | STANDARD ACCESSORIES | APPLICATIONS |
|---|---|---|
| 1. Wheel Balancing Stand with Arbour | 1. One Grinding Wheel | |
| 2. Additional Wheel Flange | 2. One Regulating Wheel | |
| 3. Additional Work Rest Blade | 3. Two Truing Devices | |
| 4. Magnetic Coolant Separator | 4. Coolant Pump with Tank | |
| 5. AC variable speed Motor for Regulating Wheel | 5. Grinding Wheel Puller/td> | |
| 6. Gearless Hydraulic Motor for Regulating Wheel | 6. Grinding Wheel Pulley Pulle | |
| 7. Auto InfeedGrinding | 7. Grinding Wheel & Regulating Wheel Nut Spanner | |
| 8. Auto Ejector/Lifter for infeedgrinding | 8. Work Rest Blade for Through Grinding | |
| 9. BimetalicBush Bearing for Grinding Wheel Head | 9. Splash Guards | |
| 10. Bar Feeder for long Bars Grinding | 10. Allen Keys and Spanners Set | |
| 11. Vibratory Feeder | 11. Hand Pump Lubrication for slides | |
| 12. Automatic Feeder for through-feed Grinding | 12. Machine Lam | |
| 13. Anti-Vibration Pads | ||
| 14. Automatic Balancing of Grinding Wheel |
