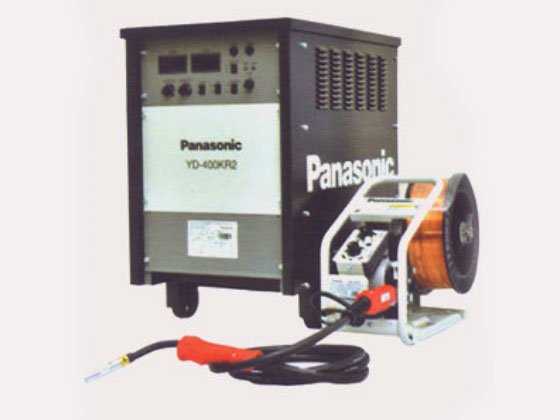

PANASONIC 400 KR2
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Surface Grinding Machine
| INPUT Rated input voltage (V) | 415, +10%, 10% |
| Phase/Freq. (no./Hz) | 3ph/50-60 |
| Max. Input KVA @ 415 Vac: | – |
| @50% Duty Cycle (KVA/KW) | – |
| @60% Duty Cycle (KVA/KW) | 21/9 |
| OUTPUT | |
| Rated Current Range (amps) | 60-400 |
| Rated Output Voltage (V) | 16-39 |
| Welding Current (40 C) | |
| @60% Duty Cycle (Amps) | 400 |
| @100% Duty Cycle (Amps) | 310 |
| GENARAL | – |
| Conformance to International Standards | – |
| Applicable Shielding Gas | CO/CO2+Ar |
| Insulation (Class) | H |
| Cooling(Type) | Forced Air Cooling |
| Dimensions(mm) | 736 x 675 x762 |
| Weight(KG) | 149 |
| WIRE FEEDER | YW-50KB3 |
| Rated Welding Current (Amps) | 400 |
| Applicable Wire Diameter(mm) | 08., 1.0, 1.2, 1.6 |
| Weight (KG) | 10.5 |
| WELDING TORCH | YT-40CS4 |
| Rated Welding Current (Amps) | 400 |
| Duty Cycle 10 Min Cycle | 400 Amps, 60% (CO2) 360 Amps, 60%(CO2+Ar) |
| Duty Cycle Continuous | 310 Amps, 100% (CO2) 280Amps, 100% (CO2+Ar) |
| Applicable Wire Diameter(mm) | 0.8,1.0,1.2 |
| Cable Length(meter) | 3 |
| Weight (incl. Cable)(KG) | 2.8 |
| Power Source | YD-400KR2DJE |
| Wire Feeder | YW-50KB3DAE |
| Welding Torch | YT-40CS4DAF |
