Tool & Cutter Grinder

Tool & Cutter Grinder

Send Email /SMS Enquiry


    Watch Video

    Tool & Cutter Grinder

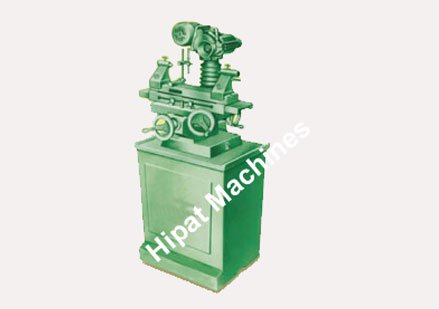

    The Universal Tool & Cutter Grinder is a robust machine capable of dealing with a wide range of tool & cutter Grinder operations. It is available as a steel cabinet mounted, machine and is designed for the rapid sharpening of H.S.S. milling cutters, spiral mills, metal slitting saws side and face cutters reamers, tap and with suitable attachments lathe tools, end mills formed cutters etc.

    A totally enclosed wheel head motor with a double ended spindle carriers one standard and one extended wheel adaptor which can be mounted on either end and will receive both the Cup and dish wheels supplied with the machine. The spindle, with runs at 2800 r.p.m. is controlled by reversing switch built into the main body of the machine. The wheel head is mounted on an engraved base plate which can swivel through 360D and can be clamped in any position. It is supported by a cast iron column having vertical adjustment, by means of a hand-wheel at the base of the machine. The column can be

    looked in any position and movement can be accurately controlled by means of a friction mounted micrometer dial.

    The upper work table is provided with the slot which not only serves as means of fixing the tooth rest etc. but also enables accurate location of the loose centre heads. It is graduated either side of the Zero setting and can swivel through 180D Provision is also made for taper setting in INCHES per FOOT. Longitudinal movement of the table is obtained from a rack pinion operated by a conveniently placed Handle or, if required, can be operated by hand pressure only. The table is located on accurately machined vee and flat ways and is fitted with adjustable stops which can limit he movement of the table in and position. Cross traverse is accurately controlled by a hand wheel situated at the front of the machine which is fitted with a friction mounted micrometer dial.

    Standard Equipments

    Universal Work Head
    Indexing Tooth Rest
    Set of Centre Heads
    Reversing Switch
    3 dia. Electric Motor

    Standard Equipments

    Hob Grinding Attachment
    Drill Grinding Attachment
    Radius Grinding Attachment
    Chaser Grinding Attachment
    Tap Lead Grinding Attachment

    TOOL KIT

    Panel Lock Key
    L-Keys 5/32″ & 3/16″
    Adaptor Puller
    Pressure Oil Can
    Double Ended Spanner
    Adaptor Nut Box Spanner
    Cup Shaped Grinding Wheel 4″ x 2″, 1″ Bore
    Dish Shaped Grinding Wheel 6″ x 1/2″, 1″ Bore

    PRICE: ON REQUEST

    Get Quotation
    Download Brochure
    Request Callback

    Order by Phone
    0671-2505250

    Shipping Information Usually dispatched With In business days.

    Technical Specifications

    MODEL AMI 80 AMI 87 AMI 92
    Swing over table (Dia) 230 mm 305 mm 350 mm
    Maximum distance between centres 305 mm 560 mm 660 mm
    Table Longitudinal traverse 305 mm 510 mm 610 mm
    Table Cross travarse 200 mm 205 mm 255 mm
    Table Dimensions 530 x 142mm 805 x 156 mm 1015 x156mm
    Tee Slots width 10 mm 12 mm 12 mm
    Centre of wheel above table 280 mm 330 mm 350 mm
    Head Swivel 90° 90° 90°
    Head Swivel 360° 360° 360°
    Grinding Spindle Speed 2800 rpm 2800 rpm 2500 rpm
    H.P. of Motor 1 HP 1 HP 1 HP
    Floor arer occupied 900 x 750mm 1120 x 920mm 1500 x 950mm
    Height to the machine 1500 mm 1680 mm 1500 mm
    Weight of the machine with standard accessories 500 kg 670 kg 825 kg
