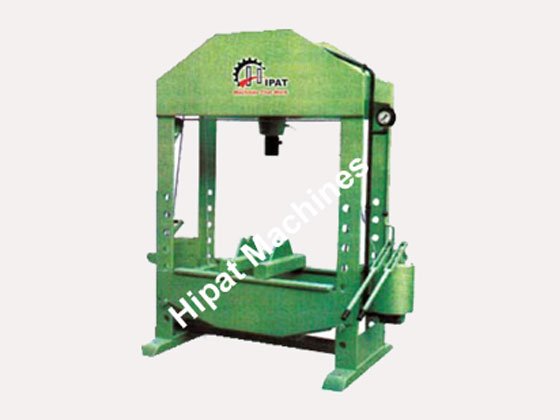

    Hydraulic Press Machine

    The sturdy coonstruction of all presses guarantees stability and durability.
    The press is provided with a 2- stage hand pump. The low pressure pump is used for rapid advance of pistion at pressure. The high pressure Pump is provided with a special material lining and is used for slow advance at high pressure.
    The winch Provided for raising and lower­ing the table is smooth running. During operation, the table is Fastened by means of pins.The press has been all steel welded.
    Standard accessories: pressure guage, planed off V- Blocks for Straightening
    SIMPLE OPERATION : Press is provided with motorised pump unit and a hand operated control valve, pump is driven by belt or by flange cuupled motor and has a pressure adjusting valve for adjustment of high pressure.

    HIGH QUALITY HYDRAULIC UNIT : Cylinder is made of special Steel that secures absolute pres­sure tightness.The seals are made of special material and guarantee long life.

    PISTON ROD & PISTON HEAD are carefully ground and hard chrome plated to obtain closest accuracy in grinding.

    PRECISION PRESSING : Actual pressure may be read in tons from the precision pressure gauge that has red zone from maximum pres­sure and
    upwards. To protect Pressure gauge during press work, a cut off valve is inserted near the Gauge press beds are paned off and as standard equipment 2
    PLANED OFF STRAIGHTEN BLOCKS are supplied.

    PRICE: ON REQUEST

    Get Quotation
    Download Brochure
    Request Callback

    Order by Phone
    0671-2505250

    Shipping Information Usually dispatched With In business days.

    Technical Specifications

    Tons Between Column Length X Breadth Between Ram to Bed Travel of Ram
    mm mm mm X max. mm
    5 500 x 125 75 x 600 100
    10 600 x 150 75 x 600 125
    25 850 x 300 180 x 910 18th
    40 950 x 350 180 x 910 190
    50 1000 x 400 180 x 50 200
    60 1050 x 450 180 x 975 200
    75 1150 x 500 180 x 975 210
    100 1200 x 600 180 x 975 225
    150 1300 x 625 180 x 975 240
    200 1325 x 650 180 x 975 240
    250 1350 x 650 180 x 975 250
    OPTIONAL ACCESSORIES STANDARD ACCESSORIES APPLICATIONS
    1. INCREASE IN MACHINE’S HEIGHT 1. RECTANGULAR BLOCK (TWO PIECES) 1. Automobiles
    2. HYDRAULIC POWER PACK 2. PRESSURE GAUGE 2. Die & Mould Manufacturers
    3. Aerospace
    4. Medical Equipment
    5. Textile Machinery
    6. Diamond & Jewellery Industries
    7. Allied Machinery
    8. Plastic Processing Machinery
    9. Defence
