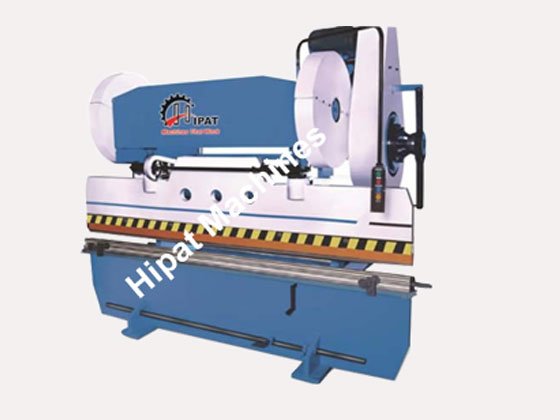

Mechanical Press Brake Machine
The Mechanical Press Brake Machine is of robust fabricated steel construction of rigid and interlocked design. It is strain free and supports the ram and bed against undesired deflection under permissible loading condition. Made from steel plates of suitable thickness and machined guide ways. Power is transmitted through two individual gear drives for uniform load distribution throughout the length. We are known as one of the best press brakes manufacturer and not only this we have achieved success through our out of the world machines so we have become one of the most eminent Hydraulic Press Brake Supplier in India.
Specifications
All dimensions are in mm
Power supply 400/440 volts, 3 phase, 50 cycles.
Stringent quality checks for easy and smooth operation.
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Technical Specifications
| Model | Capacity Tons. | Bending Cap.(length x Thick.) | Dist. Between housing | Stroke Length | Stroke per minute | Ram Adjustment | Shut height ram stroke down | Table height | Depth of throat | Main motor H.P. | Ram Adjustment motor H.P. | Die space | Machine Diameasions ( L x W x H ) |
Approx. weight Kgs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP8 215 | 20 | 1525 x 1.6 | 990 | 50 | 30 | 40 | 200 | 750 | 240 | 3 | Manual | 1525 x 125 | 1800 x 1100 x 2300 | 2150 |
| MP8 229 | 25 | 2030 x 1.6 | 1220 | 50 | 30 | 40 | 200 | 760 | 240 | 5 | 1 | 2030 x 150 | 2300 x 1150 x 2300 | 2450 |
| MP8 620 | 65 | 2030 x 4 | 1220 | 75 | 30 | 75 | 220 | 800 | 300 | 7.5 | 1.5 | 2030 x 200 | 2300 x 1150 x 2300 | 3300 |
| MP8 825 | 80 | 2540 x 4 | 1700 | 75 | 30 | 75 | 220 | 800 | 300 | 10 | 1.5 | 2540 x 200 | 2900 x 1500 x 2850 | 5500 |
| MP8 1025 | 100 | 2540 x 5 | 1700 | 75 | 25 | 75 | 275 | 800 | 300 | 15 | 2 | 2540 x 254 | 2900 x 1800 x 2850 | 6900 |
| MP8 1031 | 100 | 3125 x 4 | 1700 | 75 | 25 | 75 | 275 | 800 | 300 | 15 | 2 | 3125 x 200 | 3400 x 1800 x 3400 | 7800 |
| MP8 1225 | 120 | 2540 x 5 | 1700 | 75 | 25 | 75 | 275 | 900 | 300 | 20 | 2 | 2540 x 254 | 2900 x 1800 x 3400 | 8300 |
| MP8 1231 | 125 | 3125 x 5 | 1700 | 75 | 25 | 75 | 275 | 900 | 300 | 20 | 2 | 3125 x 254 | 3400 x 1800 x 3400 | 8900 |
| MP8 1420 | 140 | 2030 x 8 | 1420 | 75 | 25 | 75 | 275 | 900 | 300 | 25 | 2 | 2030 x 254 | 2600 x 2160 x 3200 | 6500 |
| MP8 1531 | 150 | 3125 x 6 | 1900 | 75 | 25 | 75 | 275 | 900 | 300 | 25 | 2 | 3125 x 254 | 3400 x 1800 x 3400 | 9400 |
| MP8 2031 | 200 | 3125 x 8 | 1900 | 75 | 20 | 75 | 275 | 900 | 300 | 30 | 2 | 3125 x 254 | 3400 x 2000 x 3600 | 12500 |
| OPTIONAL ACCESSORIES | STANDARD ACCESSORIES | APPLICATIONS |
|---|---|---|
| 1. Motorize back gauge | 1. Foot pedal and die block lifting ling. | 1. ELECTRIC PANNELS |
| 2. Self lubrication | 2. Fly wheel and gear guard. | 2. ROOFINGS |
| 3. Motor mounting bracket | 3. Self lubrication system. | 3. BUS BODIES |
| 4. Motor pulley | 4. Motor pulley stroke counter. | 4. KITCHEN EQUIPMENTS |
| 5. V belts | 5. Motor mounting bracket. | 5. GENERATOR ENCLOSURES |
| 6. Standard V Block & Punch. | 6. STEEL TANKS | |
| 7. STAINLESS STEEL EQUIPMENT’S | ||
| 8. COIL CUTTING INDUSTRIES | ||
| 9. AIR CONDITION DUCTS | ||
| 10. CONTAINER MANUFACTURING | ||
| 11. FLOUR MAKING MACHINES | ||
| 12. INDUSTRIAL STRUCTURES | ||
| 13. RAIL COACHES | ||
| 14. TIPPER TRUCKS | ||
| 15. WIND MILL MANUFACTURING | ||
| 16. TURNINE ENCLOSURES |
