Fly Press

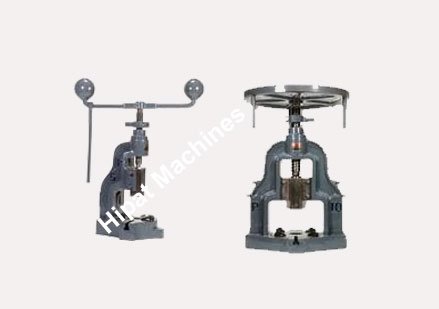

Hipat Engineering and foundry works a leading, fly press manufacturer in India. Following is our list of different types of presses like Single Sided Fly Press, Double Sided Fly Press, Arbour Press.
Scope of Standard Supply
Nos. 0, 1, & 2 supplied with Handle with one ball weight, Nos.3 to 6 with two ball weights.
Nos. 0 to 5 supplied with Flywheel with one handle (rod). No.6 with two handles (rods) and nos. 8 to 10 with three handles (rods).
Nos. 0 & 5 fitted with 2 clamps, Nos.6 to 8 & 10 with four clamps.
Nos. 3, 4, 5, 6, 8 and 10 are supplied with bushing in the hole through base.
Base Hole adjustable with Bushing to suit different jobs.
Nos. 6 (Single sided) and Nos. 6, 8, 10 (Double sided) are supplied with a wheel.
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Technical Specifications
| No. Size | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IN CH | MM | IN CH | MM | IN CH | MM | IN CH | MM | IN CH | MM | IN CH | MM | IN CH | MM | IN CH | MM | |
| Base to Guide | 4 ½ | 114 | 5 | 127 | 5 ¾ | 146 | 6 ¾ | 171 | 7 ¼ | 184 | 8 | 204 | 9 | 229 | 11 | 279 |
| Centre to back | 3 | 76 | 3 | 76 | 3 ¾ | 95 | 4 ½ | 114 | 4 ¾ | 146 | 5 ¼ | 133 | 6 | 152 | 8 | 203 |
| Diameter of Screw | 1.7 /16 | 37 | 1.11 /16 | 43 | 1.13 /16 | 43 | 1.13 /16 | 46 ½ | 17 /8 | 48 | 1 7/8 | 48 | 23 /8 | 60 | 3 | 76 |
| Hole Through Base ( Without Ring) | 1 ¾ | 44 | 2 | 51 | 2 ½ | 64 | 3 | 76 | 3 ½ | 89 | 4 | 102 | 4 ½ | 114 | 6 | 152 |
| Hole Through Base ( With Ring) | – | – | – | – | – | – | 1 ½ | 38 | 1 ¾ | 44 | 2 | 51 | 2 ¼ | 57 | 3 | 76 |
| Stroke | 3 | 102 | 4 | 102 | 4 ½ | 114 | 4 ½ | 114 | 5 ½ | 139 | 5 ¾ | 148 | 6 | 152 | 8 | 203 |
| Hole in Ram (Dia) |
¾ | 19 | ¾ | 19 | ¾ | 19 | ¾ | 19 | ¾ | 19 | ¾ | 19 | 1 | 26 | 1¼ | 32 |
| Hole in Ram ( Depth) |
1 ½ | 38 | 1 ½ | 38 | 1 ½ | 38 | 1 ½ | 38 | 1 ½ | 38 | 1 ½ | 38 | 2 | 51 | 2½ | 64 |
| Diameter of Flywheel | 28 | 229 | 18 | 229 | 19 ¼ | 260 | 21 | 536 | 23 | 587 | 23 | 587 | 29 | 739 | 32 | 813 |
| Height of the body | 19 ¼ | 484 | 19 ¼ | 484 | 21 ½ | 546 | 24 ¾ | 631 | 26 ¼ | 682 | 28 ¾ | 733 | 33 ¼ | 847 | 40 | 1016 |
| Total weight of Machine | 35 | 78 | 100 | 140 | 170 | 200 | 300 | 550 | ||||||||
| APPLICATIONS |
|---|
| 1. Automobiles |
| 2. Die & Mould Manufacturers |
| 3. Aerospace |
| 4. Medical Equipment |
| 5. Textile Machinery |
| 6. Diamond & Jewellery Industries |
| 7. Allied Machinery |
| 8. Plastic Processing Machinery |
| 9. Defence |
