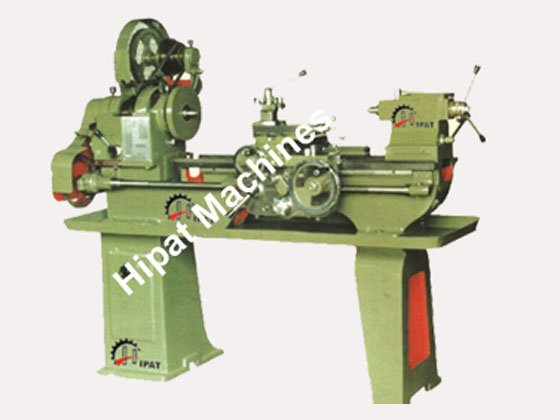

Light Duty Precision Lathe Machine
re miniature versions of a general-purpose center lathe (engine lathe). They typically have swings in the range of 3″ to 7″ (70 mm to 170 mm) diameter (in other words, 1.5″ to 3.5″ (30 mm to 80 mm) radius). They are small and affordable lathes for the home workshop or MRO shop. The same advantages and disadvantages apply to these machines as explained earlier regarding 3-in-1 machines.
As found elsewhere in English-language orthography, there is variation in the styling of the prefixes in these machines’ names. They are alternately styled as mini lathe, minilathe, and mini-lathe and as micro lathe, microlathe, and micro-lathe.
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Technical Specifications
| Model | HLD-4 |
|---|---|
| BED LENGTH (4’-6”) | 1370 MM |
| BED WIDTH | 235 MM |
| GAP LENGTH | 120 MM |
| CAPACITIES | |
| HEIGHT OF CENTRE | 165 MM |
| SWING OVER BED | 320 MM |
| SWING OVER GAP | 510 MM |
| SWING OVER CROSS SLIDE | 180 MM |
| ADMIT BETWEEN CENTRE | 660 MM |
| MOVEMENT OF CROSS SLIDE | 215 MM |
| MOVEMENT OF COMPOUND SLIDE | 110 MM |
| HEAD STOCK | |
| TAPER BORE IN SPINDLE SLEEVE | MT-3 |
| SPINDLE THREAD | 6 TPI |
| SPINDLE BORE | 41 MM |
| NO. OF SPINDLE SPEED | 8 |
| TAIL STOCK | |
| SPINDLE DIA | 38 MM |
| TAPER IN SPINDLE | MT-3 |
| SPINDLE MOVEMENT | 125 MM |
| THREADS | |
| METRIC PITCH | 1 TO 6 MM |
| PINCH PITCH | 2 TO 24 TPI |
| LEAD SCREW | 4 TPI & 6TPI |
| ELECTRICAL | |
| MOTOR POWER | 1 H.P./0.75 KW |
| DRIVE | |
| V BELT | |
| GENERAL | |
| WEIGHT (APPROX.) | 460 KG |
| FLOOR SPACE (APPROX.) | L-1600 MM W-915 MM |
| OPTIONAL ACCESSORIES | STANDARD ACCESSORIES | APPLICATIONS |
|---|---|---|
| 1. Electric Motor | 1. SAFE GUARD | 1.TRAINER LATHES |
| 2. Starter or Electric Coolant Pump | 2. MOTOR RAILS & V PULLEY | 2.EDUCATIONAL INSTITUTES |
| 3. 4jaw independent chuck | 3. CHANGE GEAR SET | 3.GOVERNMENT AND PRIVATE ITIs (INDUSTRIAL TRAINING CENTRES) |
| 4. 3jaw self centering chuck | 4. SWITCH STAND | 4.DIPLOMA COLLEGES |
| 5. Gears to cut metric threads | 5. THREAD DIAL | 5.ENGINEERING COLLEGES |
| 6. Taper turning attachment | 6. SQUARE TOOL POST | 6.HOBBY LATHE |
| 7. Tool post grinder & Double Gap or Triple Gap etc. | 7. DEAD CENTER NO-2 | |
| 8. SPINDLE SLEEVE |
